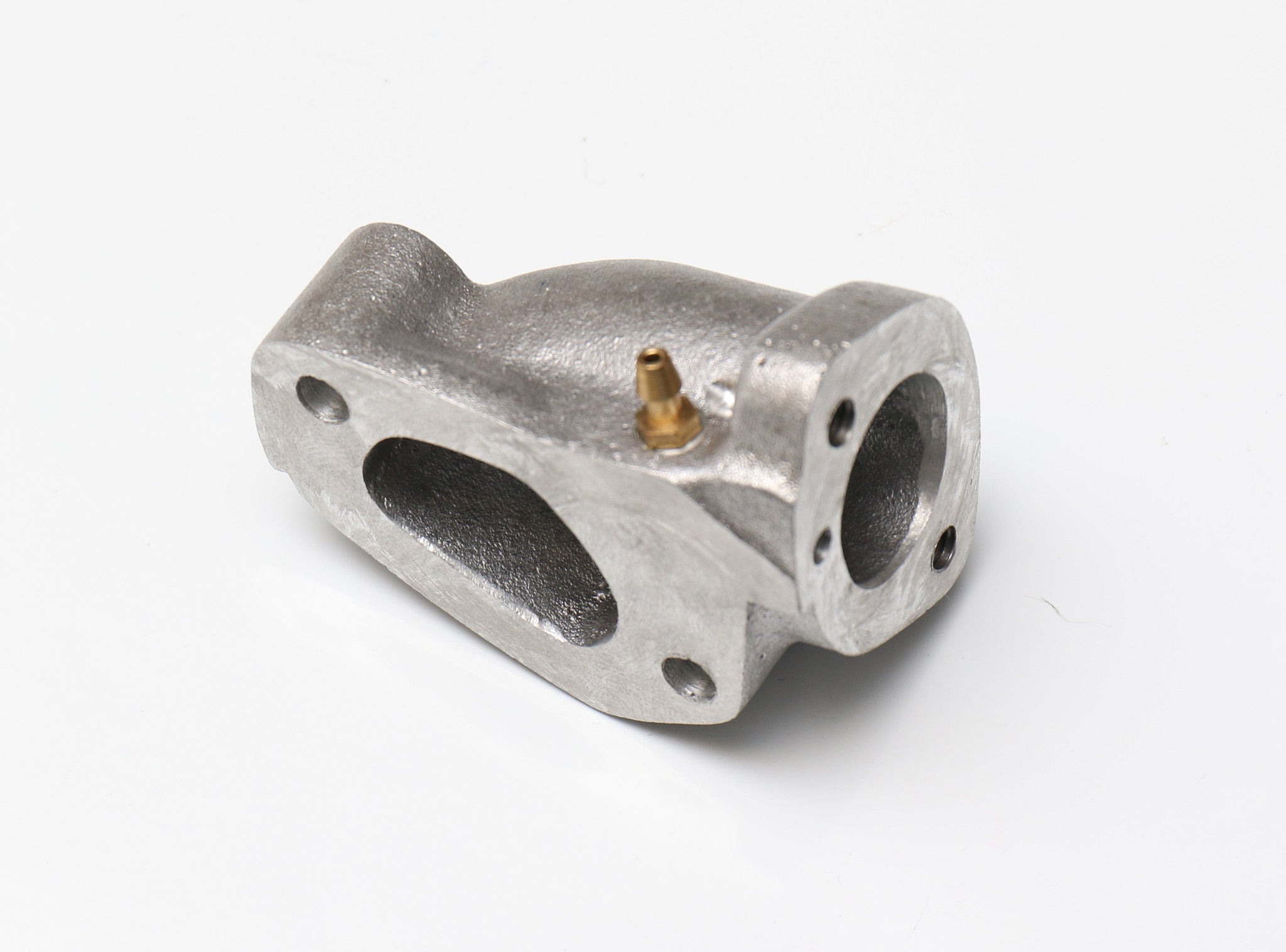

Zenoah ZG 45 Cast Aluminum Intake Bend

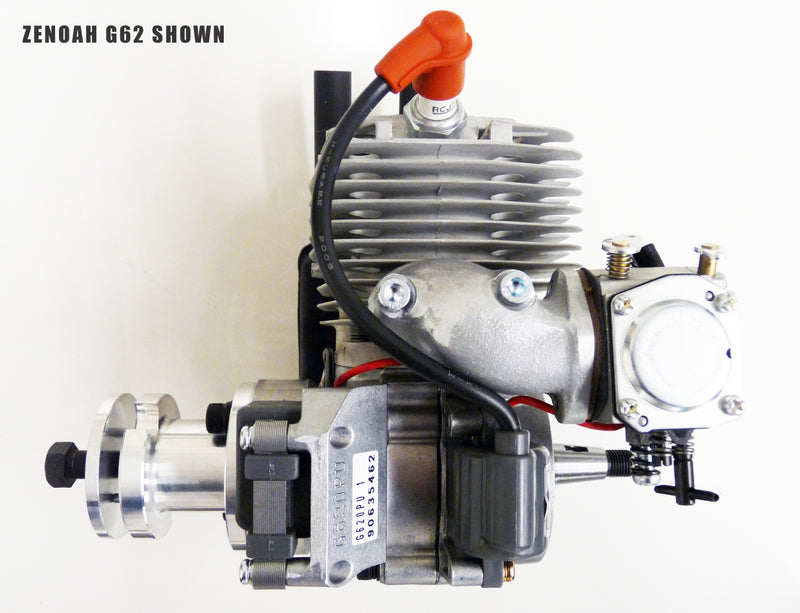

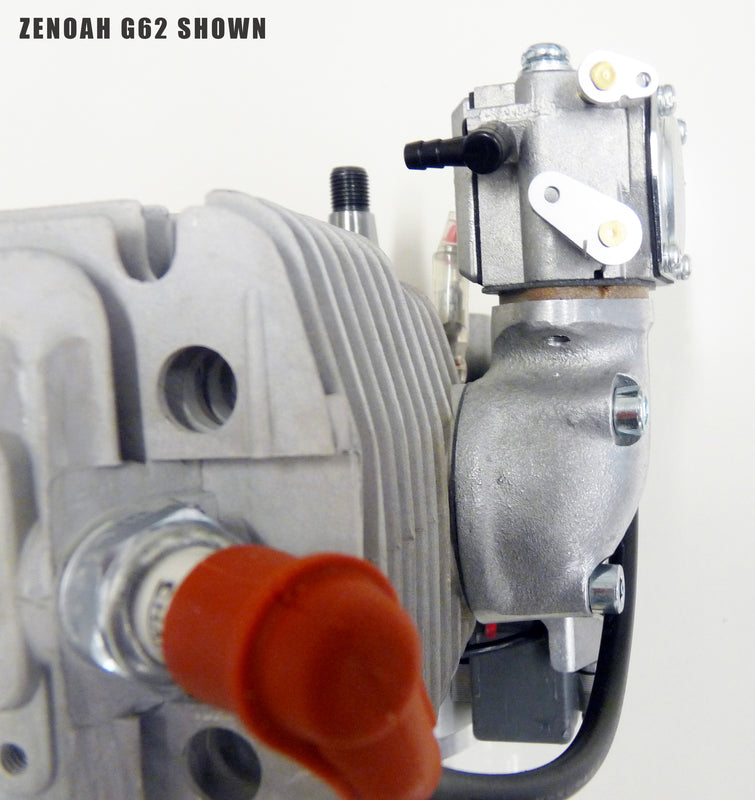

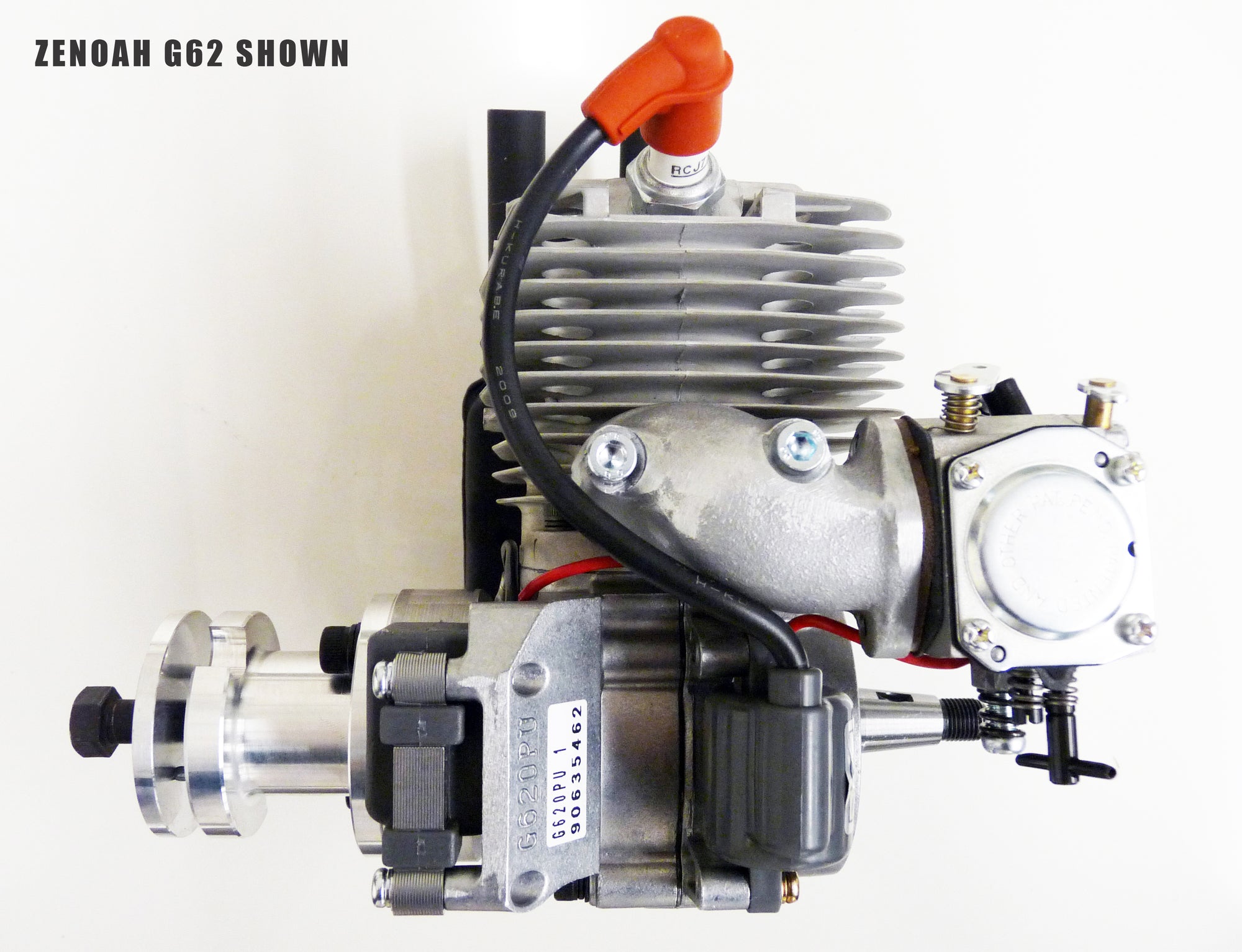

Cast aluminum. With this bend fitted, the intake air can be drawn from the fuselage, effectively silencing the intake noise. The carburetor can be hooked up direct from the rear. It also markedly reduces the fuel consumption.

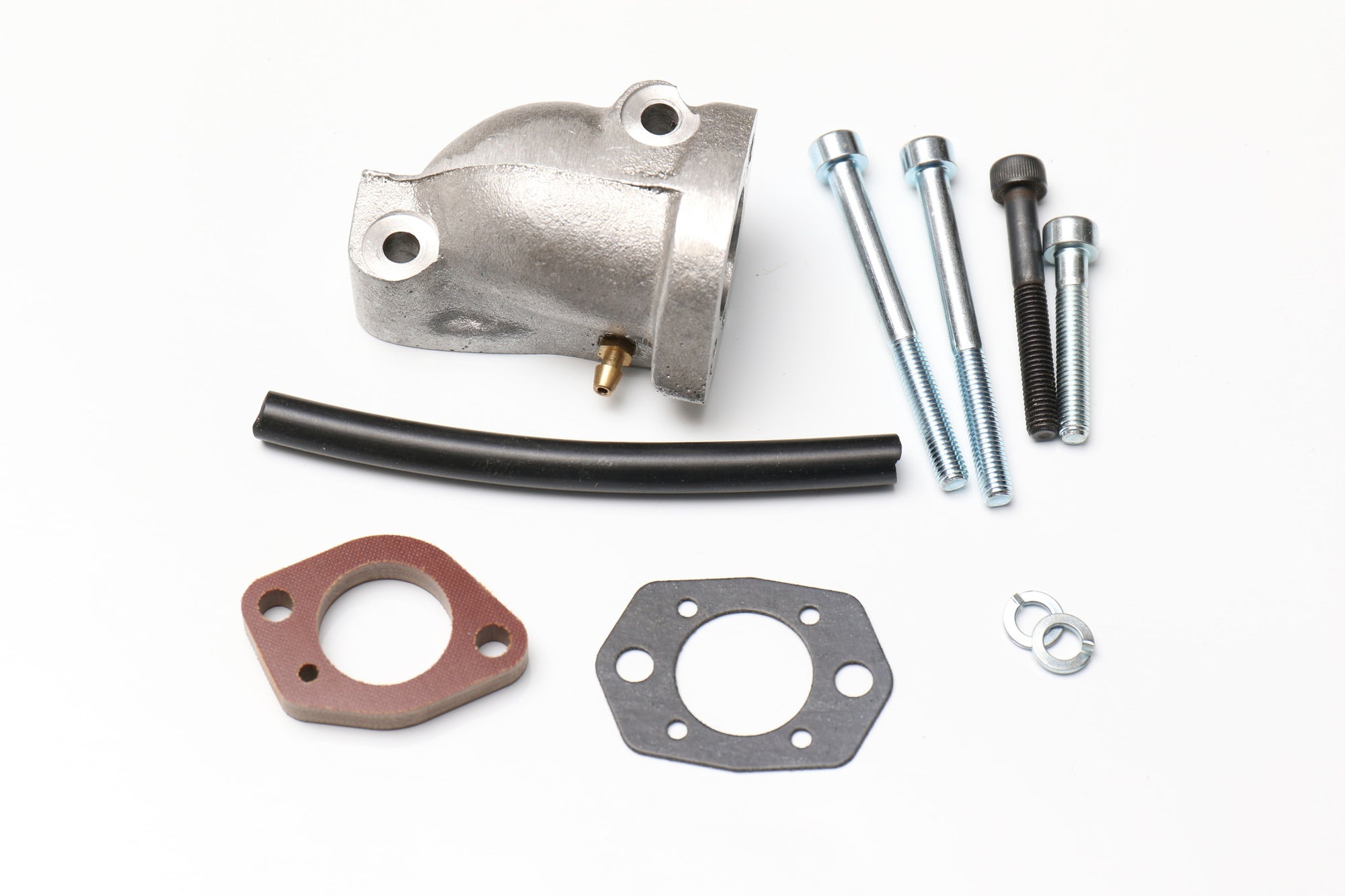

Supplied complete with mounting bolts, gasket and the 6mm insulator block.

It is strongly recommended that the small intake tube be used.

                                         G62                G45                  G38

                                         H           L        H          L          H         L

Stock setting                  1.75     1.5     1.75     1.5      1.75     1.5

With intake tube            1.25     1.35   1.25     1.25    1.25     1.25

Intake tube and bend   0.75     1.35   0.75     1.25    0.75     1.25
