• Jeti Duplex EX R7 2.4GHz Receiver w/Telemetry

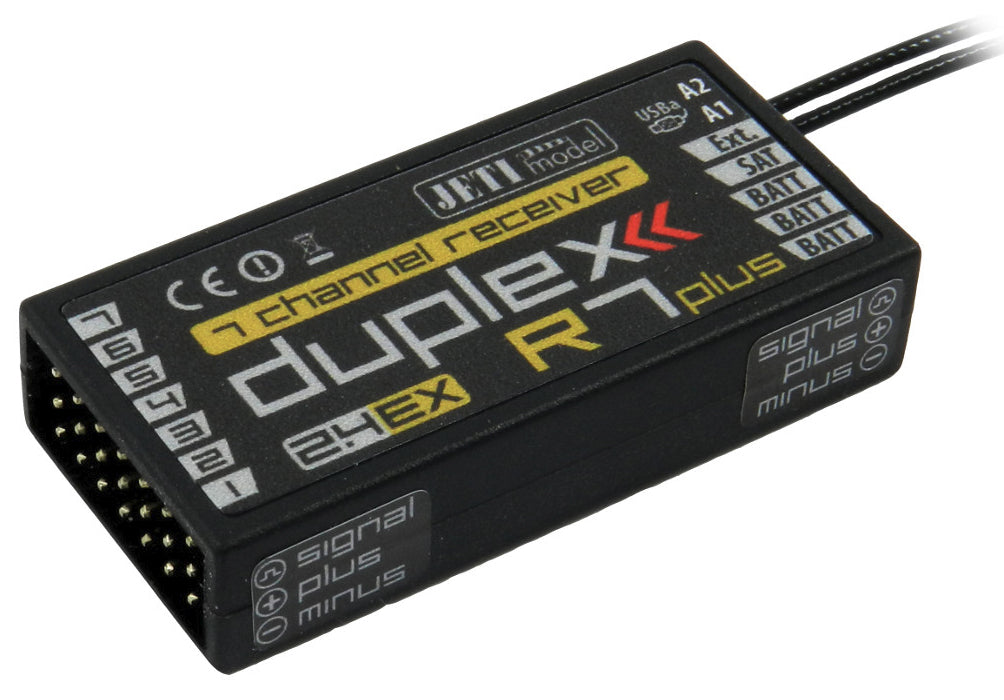

Jeti Duplex EX R7 2.4GHz Receiver w/Telemetry


Jeti Duplex EX R7 2.4GHz Receiver w/Telemetry

Duplex revolutionary, fully digital 2.4GHz, frequency hopping radio system is fully designed and manufactured by Jeti Model in the Czech Republic. Full line of Duplex EX receivers is part of the most advanced radio system on today's market. Every receiver comes with programmable failsafe and digital telemetry.

One of the most attractive features of the Duplex 2.4GHz line of products is the full integration with all Duplex telemetry sensors. You can easily observe up to 40 different parameters in real-time directly on the transmitter. Or, by using the JetiBox Profi (sold separately) you can see your data in parallel mode giving you and your copilot valuable real time information (see video).

With any of the Duplex 2.4GHz receiver you can simultaneously monitor all of your sensor data using the Duplex JetiBox Profi or Jeti 2.4GHz Transmitters.
Port Configurations (Rx Firmware 3.20):
Standard: 1-7 Servo, SAT Satellite In, Ext Telemetry/USB Programming
PPM/Servo: 1-7 Servo, SAT PPM, Ext Telemetry/USB Programming
EX Bus/Servo: 1-7 Servo, SAT Satellite In, Ext EX Bus/USB Programming
UDI/Servo: 1-7 Servo, SAT UDI, Ext Telemetry/USB Programming


Weight [g] 13
Dimensions [mm] 51 x 24 x 11
Number of channels 7
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 2 x 200
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 30
Satellite receiver support Yes
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
