Zenoah ZG 20 Cast Magnesium Intake Bend

$49.00

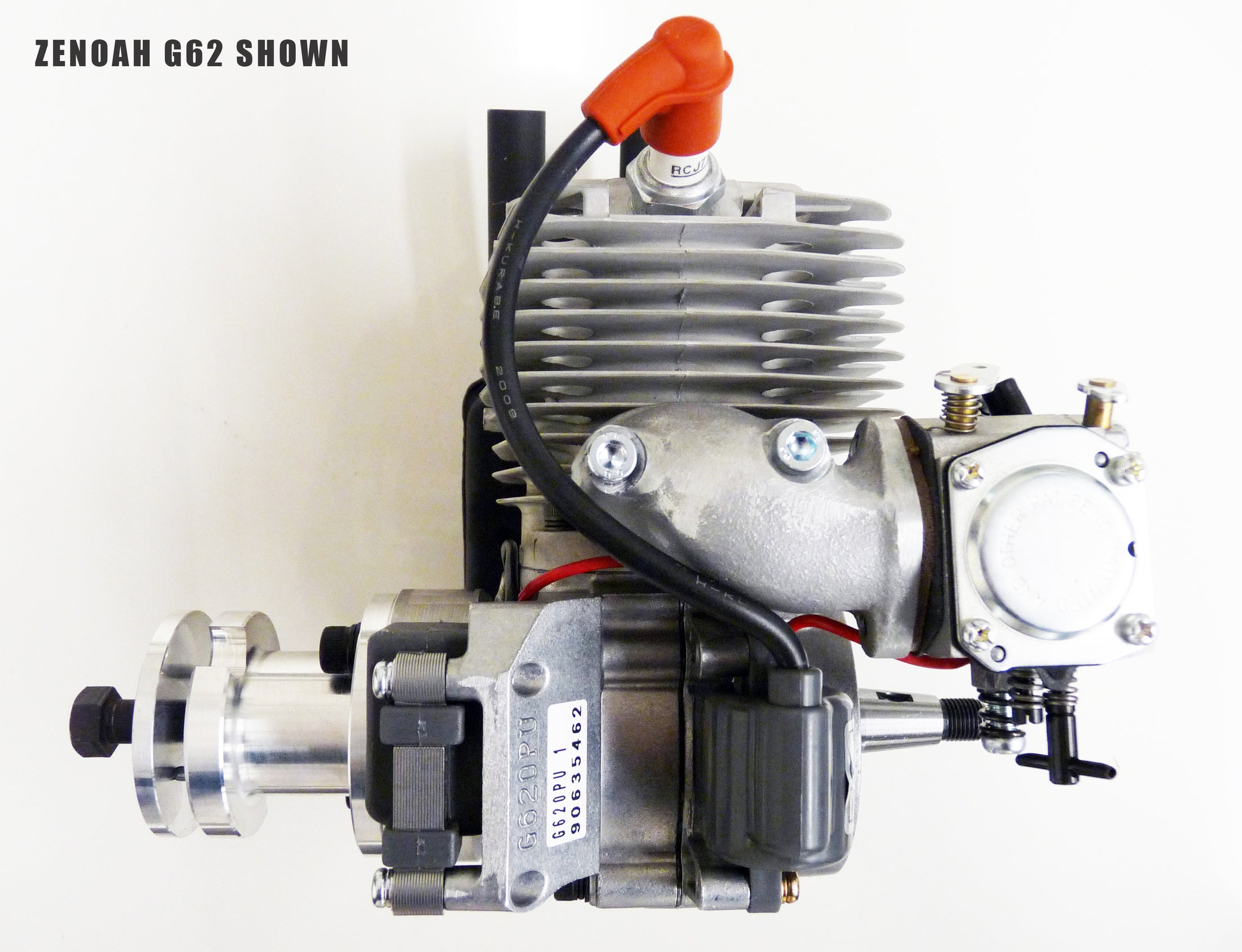

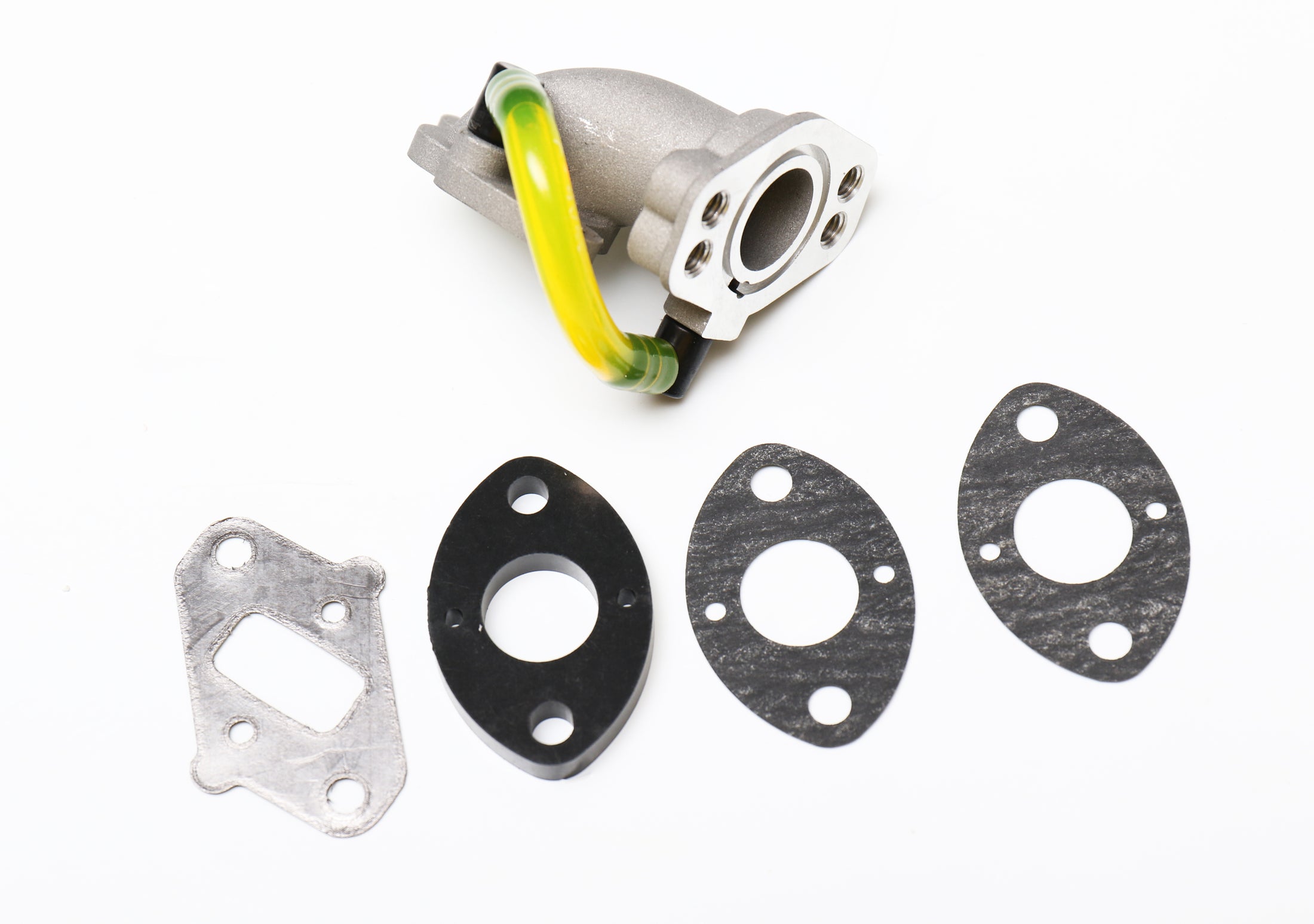

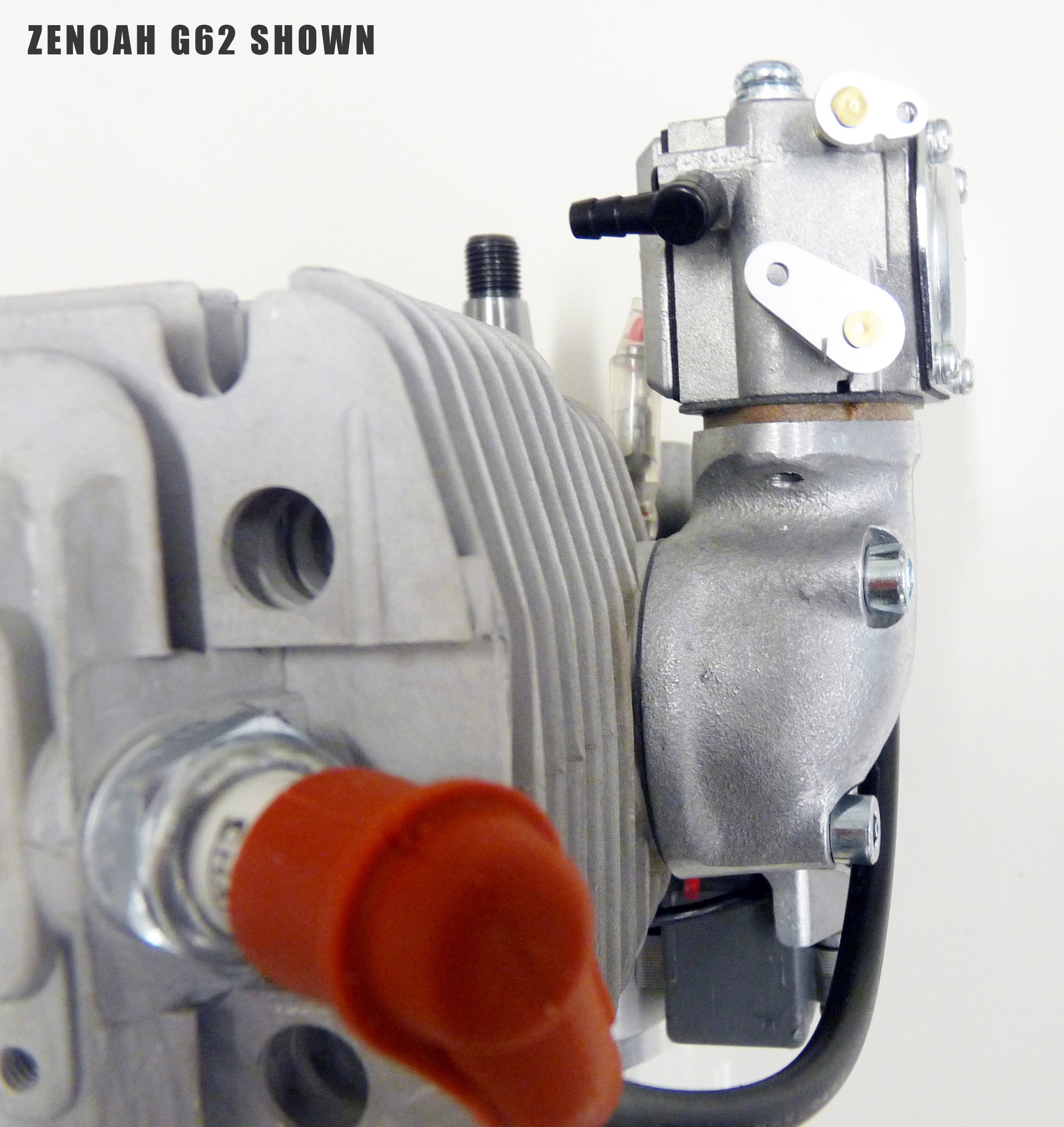

This super lightweight magnesium Intake Bend makes your ZG 20 even more compact. To draw the intake air from inside the fuselage is the easiest method to reduce the intake noise. The carburetor can be mounted in different angles on the bend, to fit perfect to your model. Because of the use of magnesium the Intake Bend with the isolator and the Gaskets weights just 38,5 g.


To fit the carburetor to this bend, the fuel nipple must be turned in the carburetor body. This nipple consists of a brass core with a riffled edge over which a plastic spout is injection molded. If you try to turn this nipple with pliers, the plastic is forced to expand over the riffles, making the nipple useless as it will only leak. To avoid any trouble send us your carburetor with your order and we will do this tricky nipple turning for you.

It is strongly recommended that the small intake tube be used.



                                         G62                G45                  G38

                                         H           L        H          L          H         L

Stock setting                  1.75     1.5     1.75     1.5      1.75     1.5

With intake tube            1.25     1.35   1.25     1.25    1.25     1.25

Intake tube and bend   0.75     1.35   0.75     1.25    0.75     1.25
