Valach by Fiala VM 120 I2-4T Inline
Please contact email@example.com for possibly lower shipping rates outside the US.

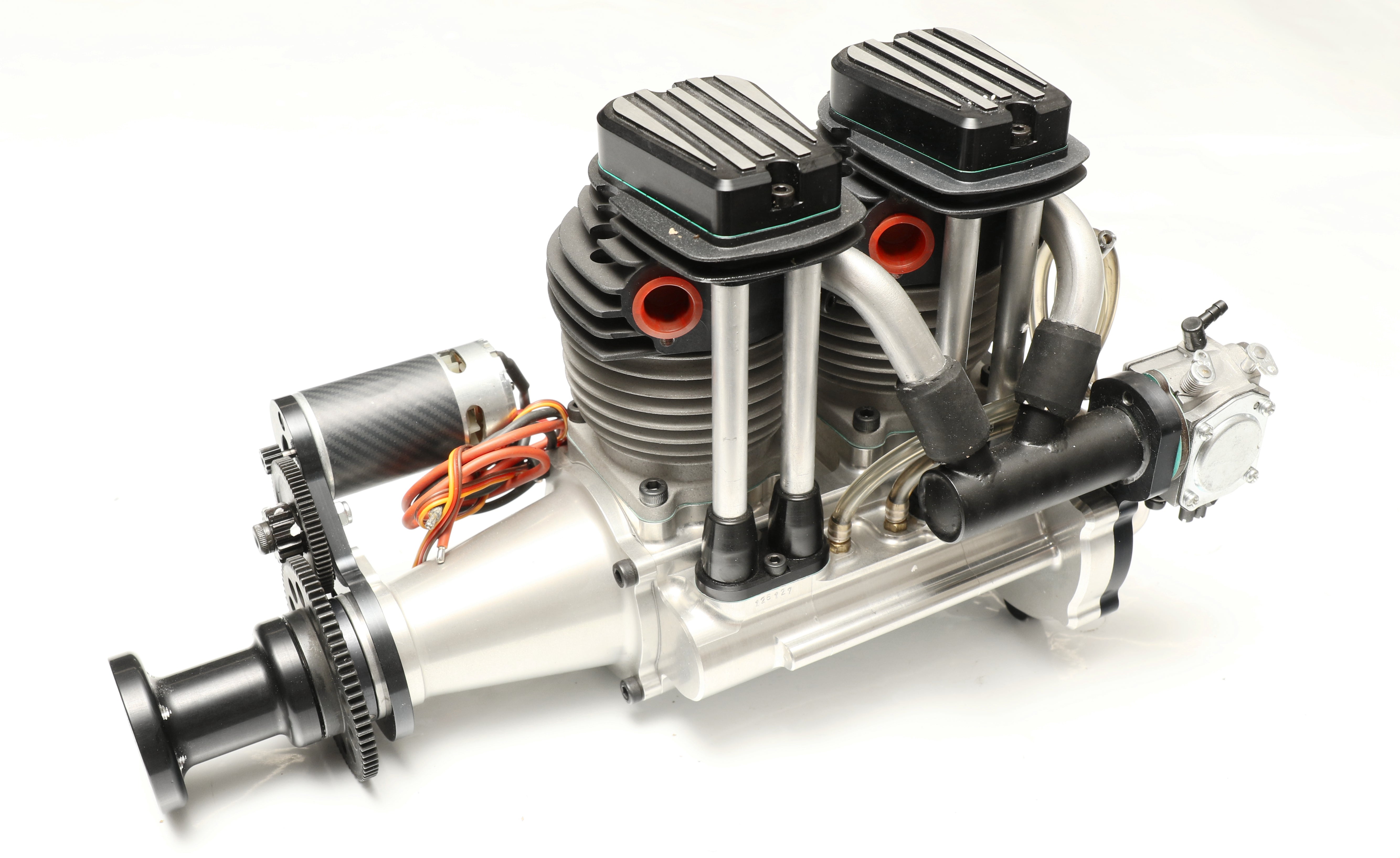

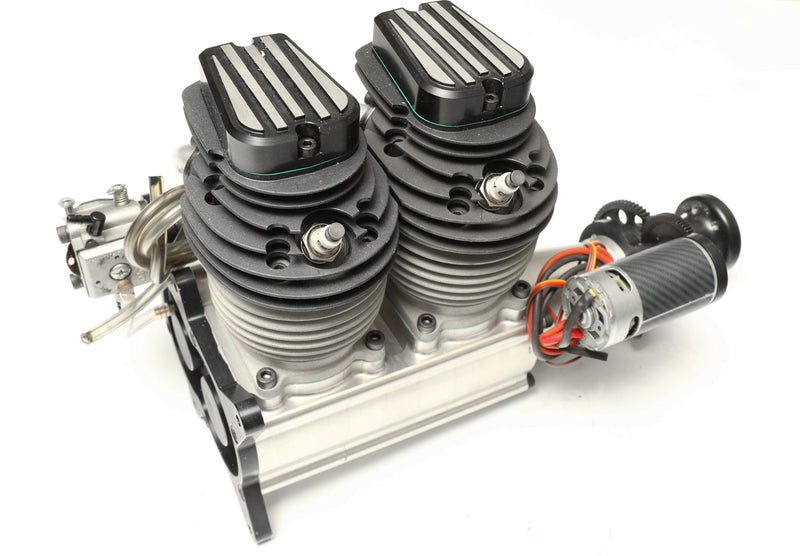

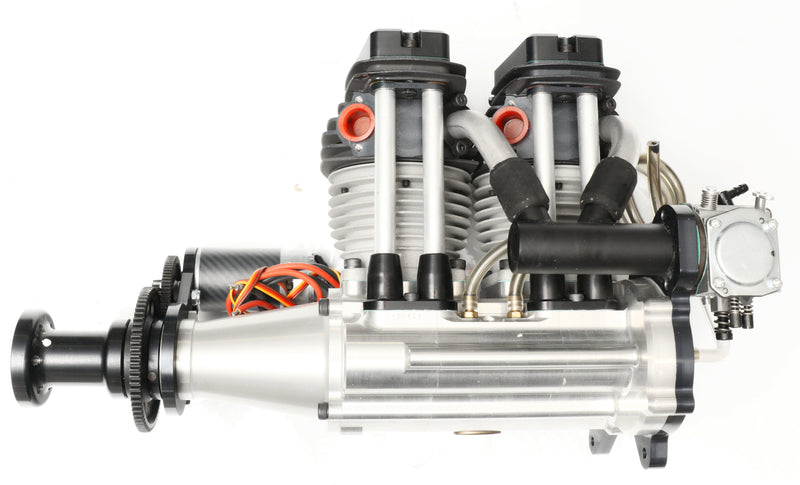

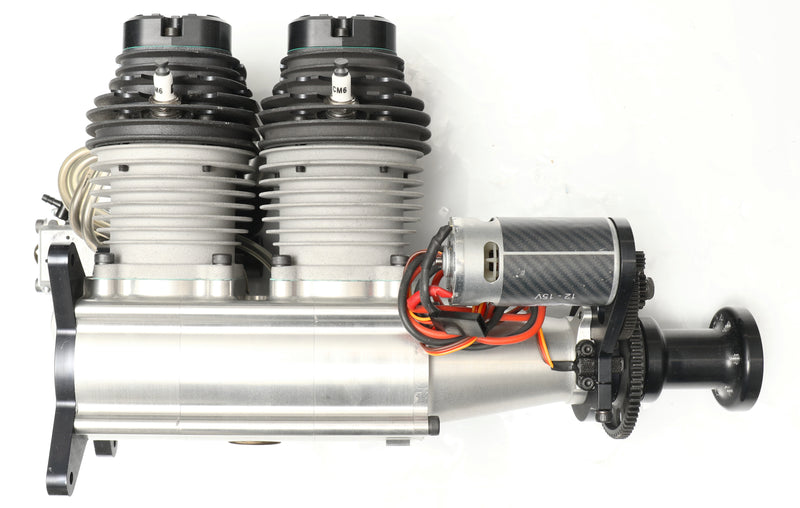

Valach by Fiala 120cc inline twin cylinder gas 4stroke engine with electronic ignition
Make sure to research the recommended accessories at
Capacity: 120 cc
Bore: 47 mm
Stroke: 35 mm

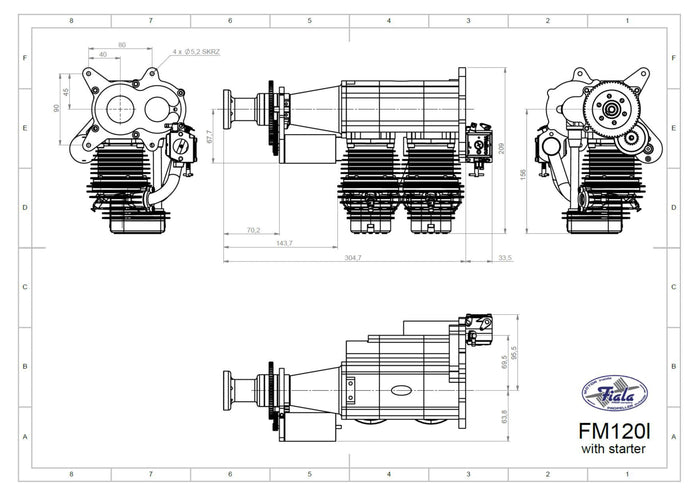

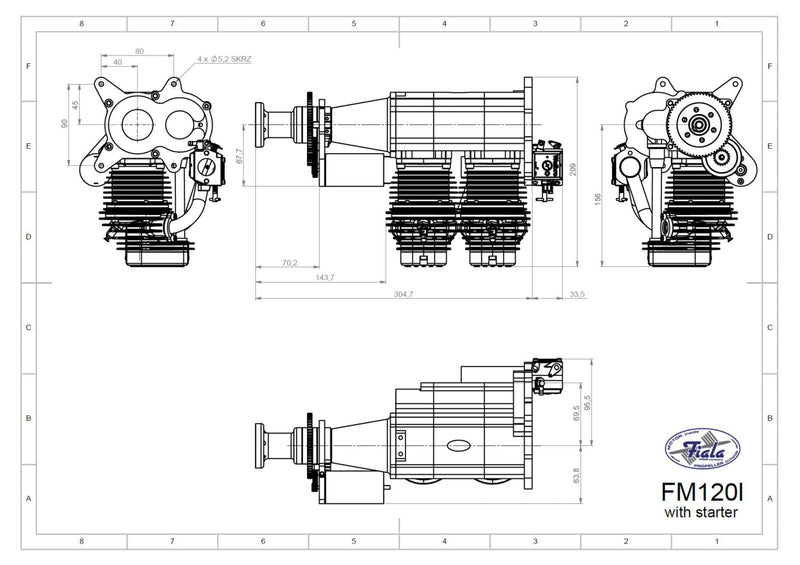

Height to crankshaft center: 154 mm
Length from engine mount to prop hub: 245.5 mm
Engine weight: 4660 g
including ignition: 4855 g
Ignition voltage range: 4.8 - 9 V
If my Valach Ignition has a second JR cable:
It offers you a kills switch functionality. Is for ON / OFF switching your ignition.
Hook that up to your receiver, set up a negative/positive mix and you are set to go.
Recommended prop: Please see that you run Valach engines on Fiala props.
Fiala owns and makes Valach engines, the development of the engines goes hand in hand with the development of their propellers, these is truly the only make that has a custom prop in mind.
Props are not simply paddles that drive an engine forward, they are sophisticated designs with well thought-out airfoils.
In this case engine are propeller are matched.
Dr. G's recommendation
Fiala 28x14 Natural Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 28 x 14 Black Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 30 x 12 Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 30 x 14 Natural Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 30 x 14 Black Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 32 x 12 Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Due to customer request allow me to share with you some essentials that I personally recommend purchasing with your Valach engine.
Valach, just like 3W, Desert Aircraft and many other leading manufacturers of engines, do not supply an exhaust solution. Hence I recommend that you order one with your motor, to be found under Valach Exhaust Solutions on this site.
4-stroke gas engines do run on pre-mix oil lubrication. Said oil will be expelled through a drain on the back plate of the motor. Should you want to avoid a dirty airframe I recommend getting our oil catch system, to be found under accessories.
Furthermore I recommend getting the feeler gauge blade set, an ignition battery from us (we have two technologies available) and our external APS fuel pump for those who want the added safety of redundancy.
And last, a very important pointer: Valach motors were designed with Fiala props in mind. Should you want to run the shown pitch and diameter recommendations you WILL need to run a Fiala prop. Should you want to run props of a different brand you will most likely have to drop 2 in pitch due to Fiala's unique airfoil choice. Other brands plain run at a higher drag rate.
Bore 47 mm
Stroke 35 mm
Height from prop shaft or diameter on radial and twin 6 inches
Length mount to hub 9.65 inches
Weight 4855 gram
Fiala range 2 blade 28*14 - 32*14
Very convenient to have as the Valach does not come with preinstalled throttle and choke horn:
