Valach by Fiala VM 170 B2-4T
Sorry, currently out of stock
Please contact firstname.lastname@example.org for possibly lower shipping rates outside the US.

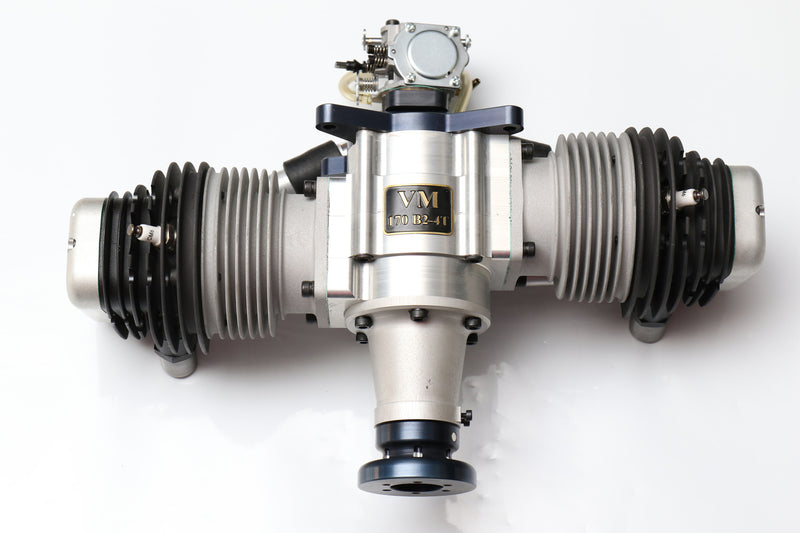

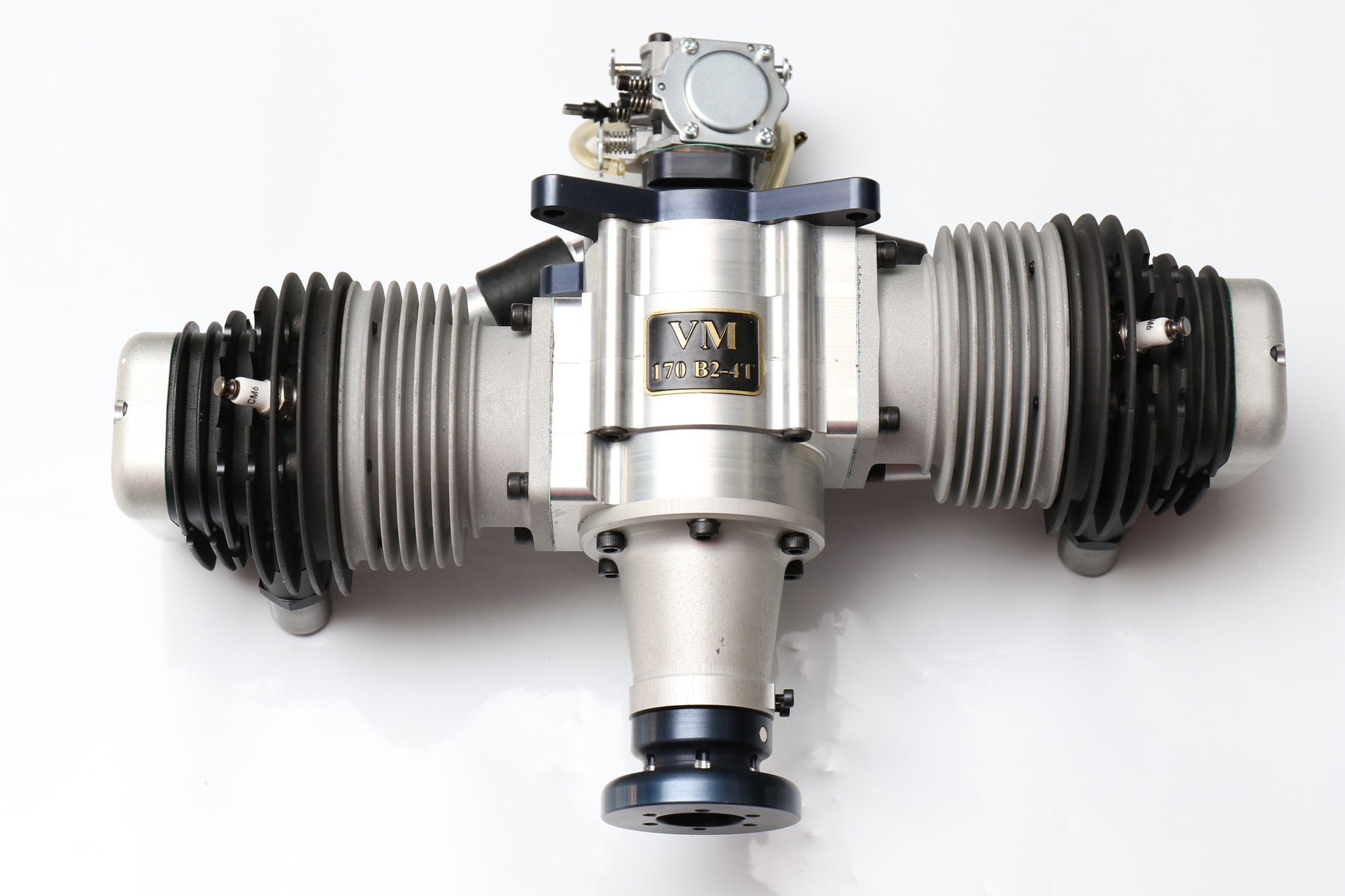

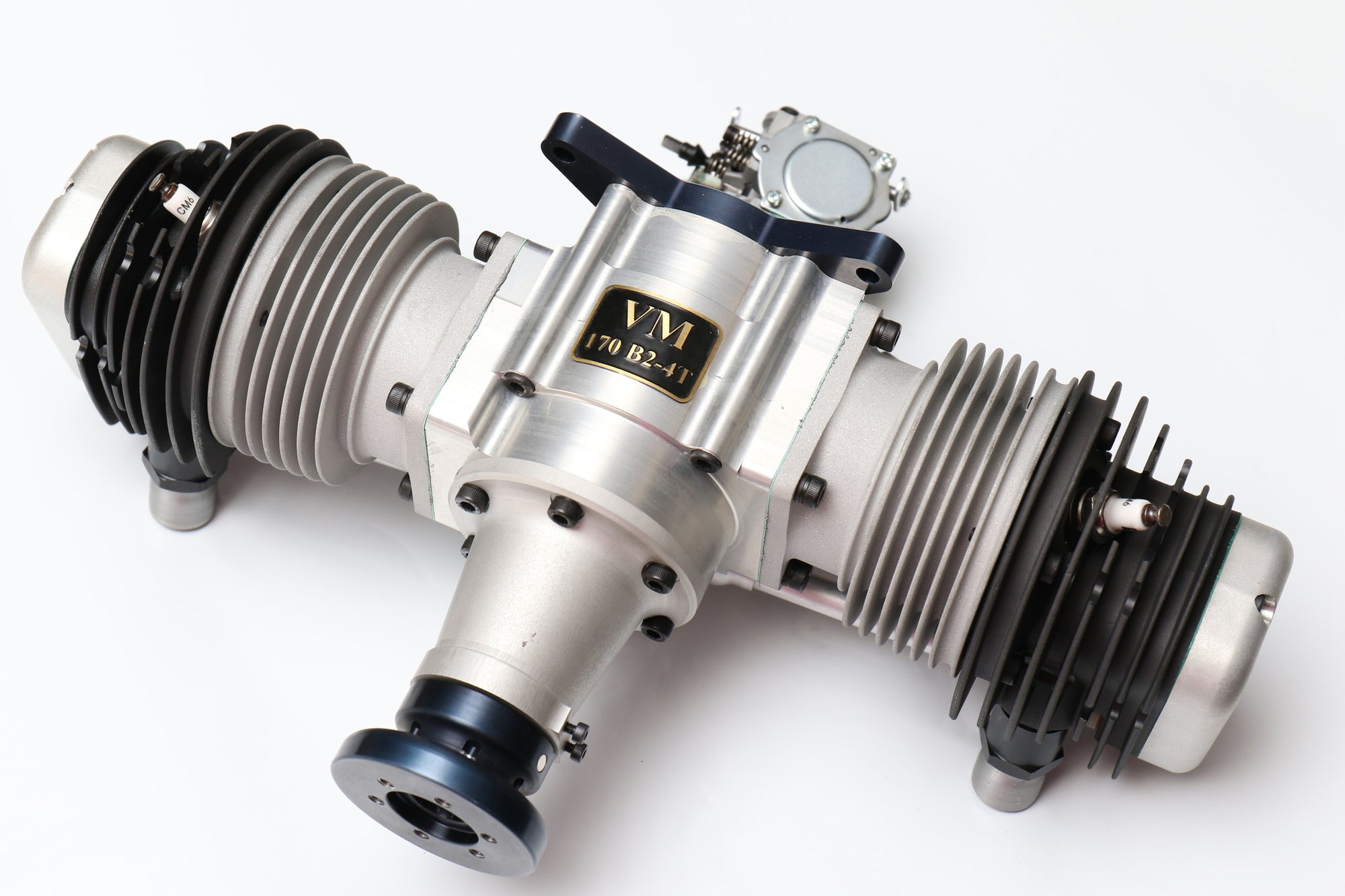

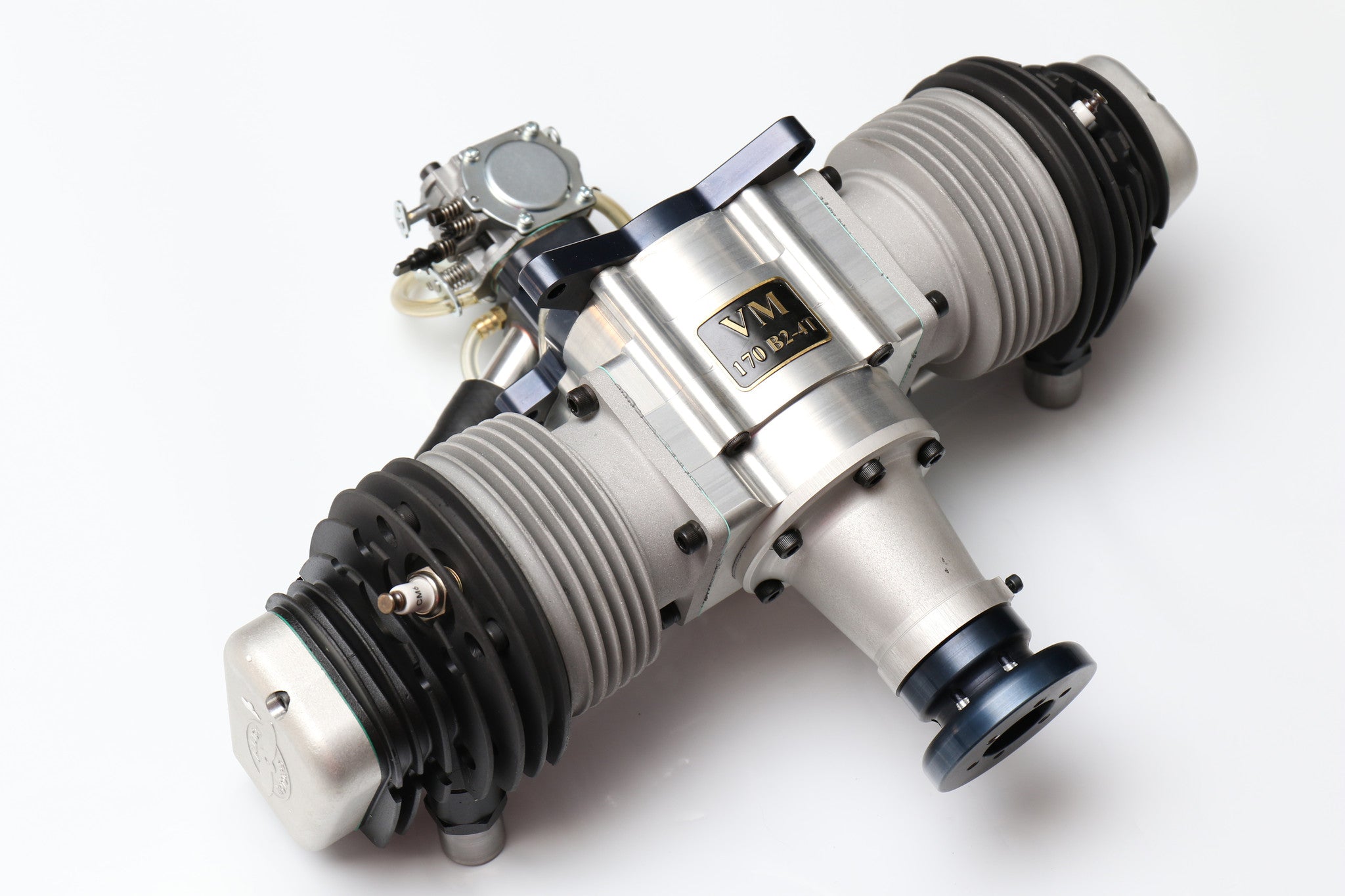

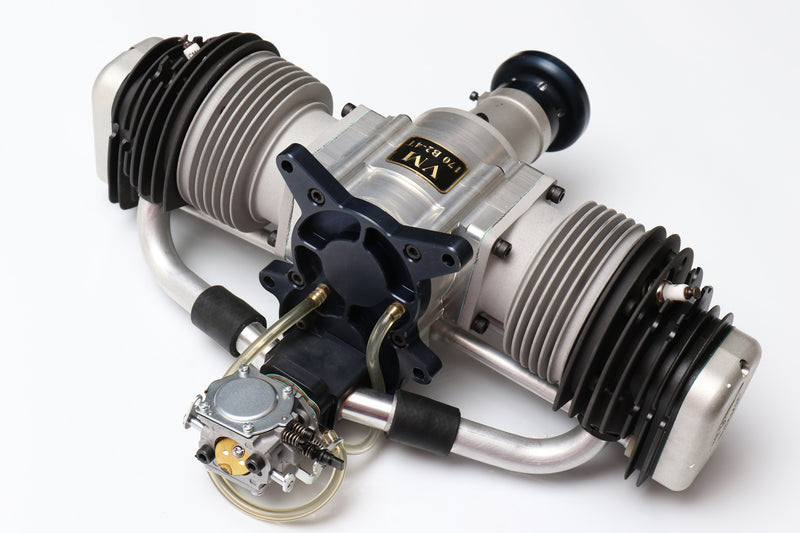

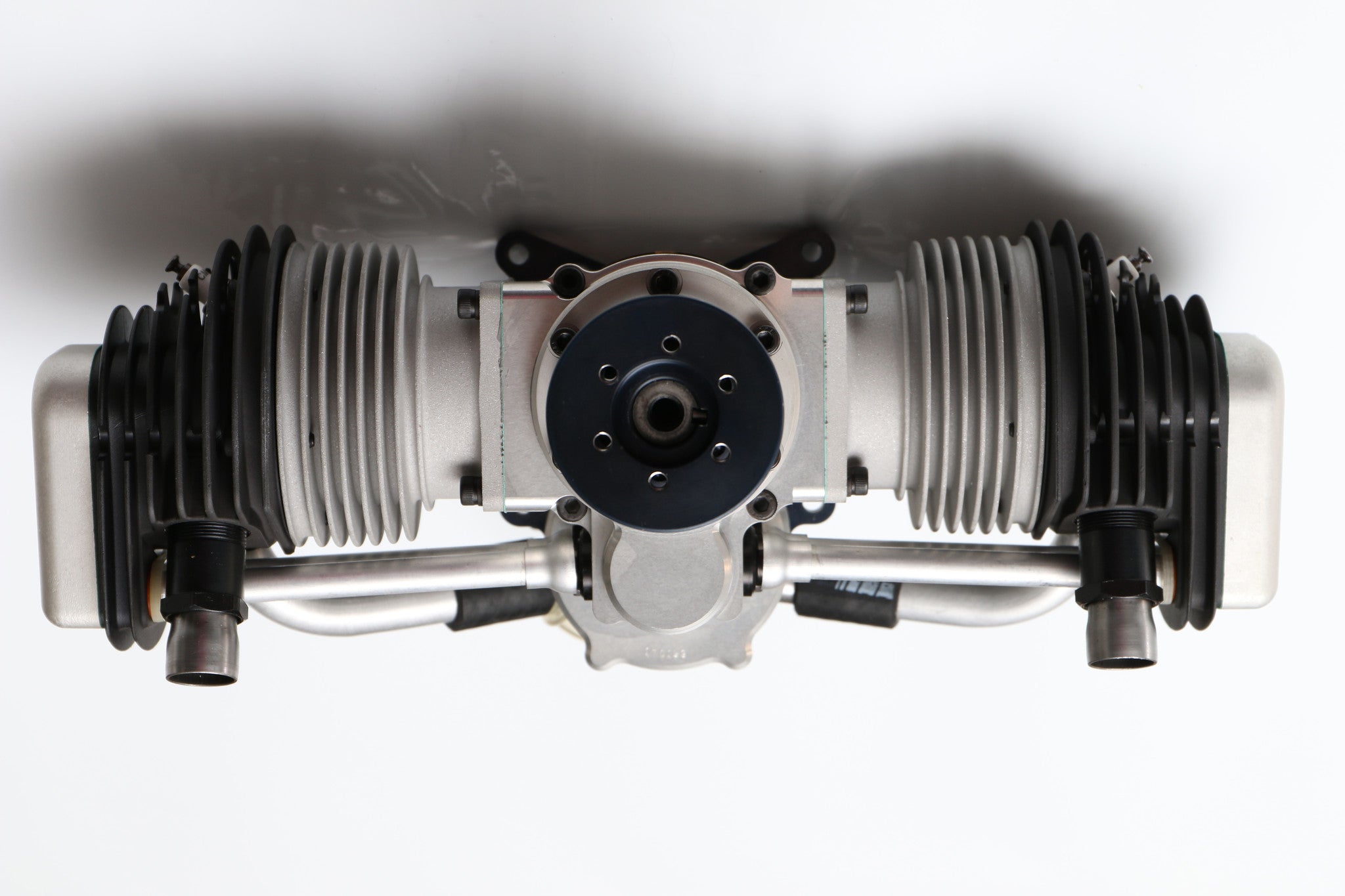

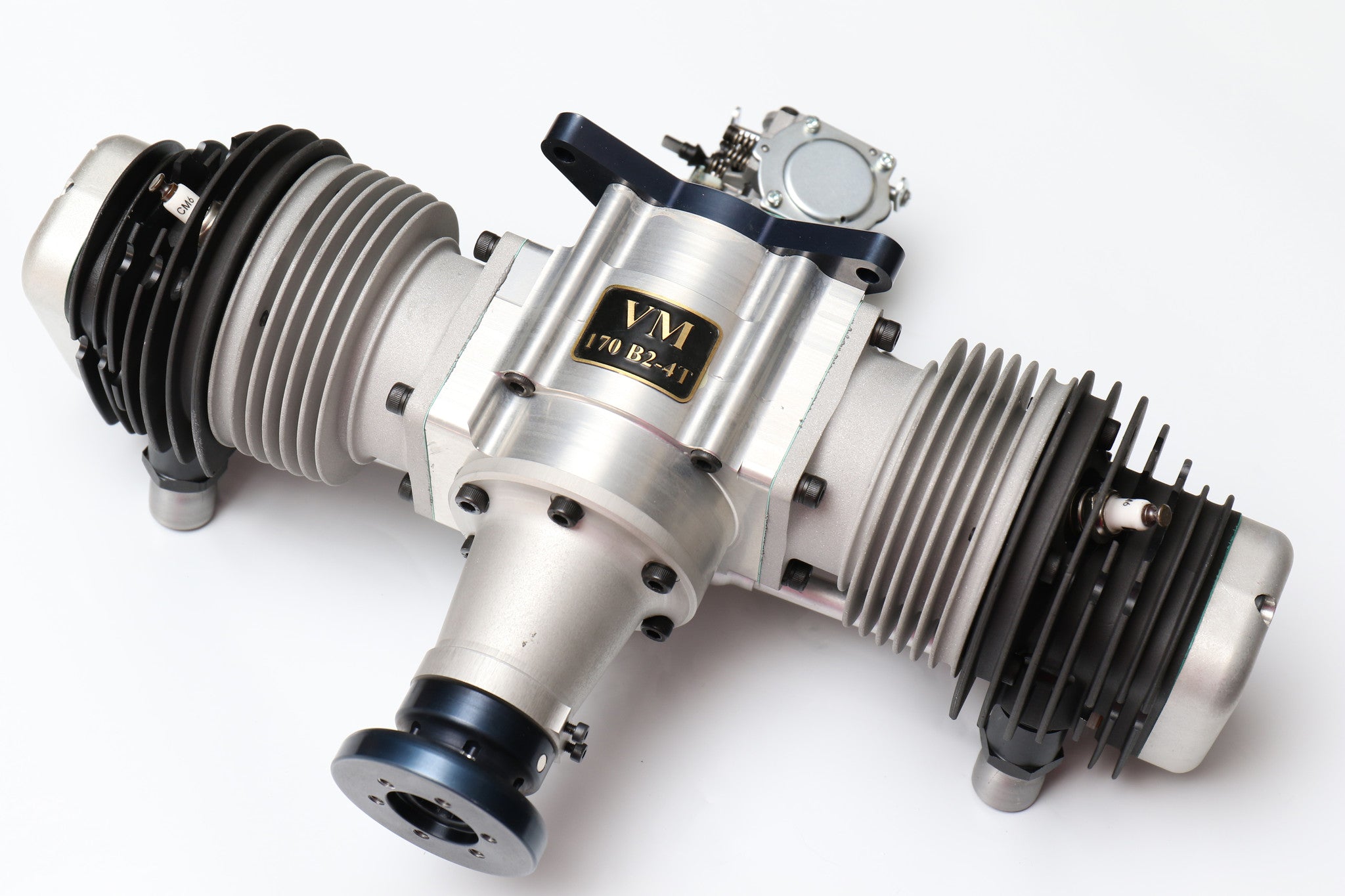

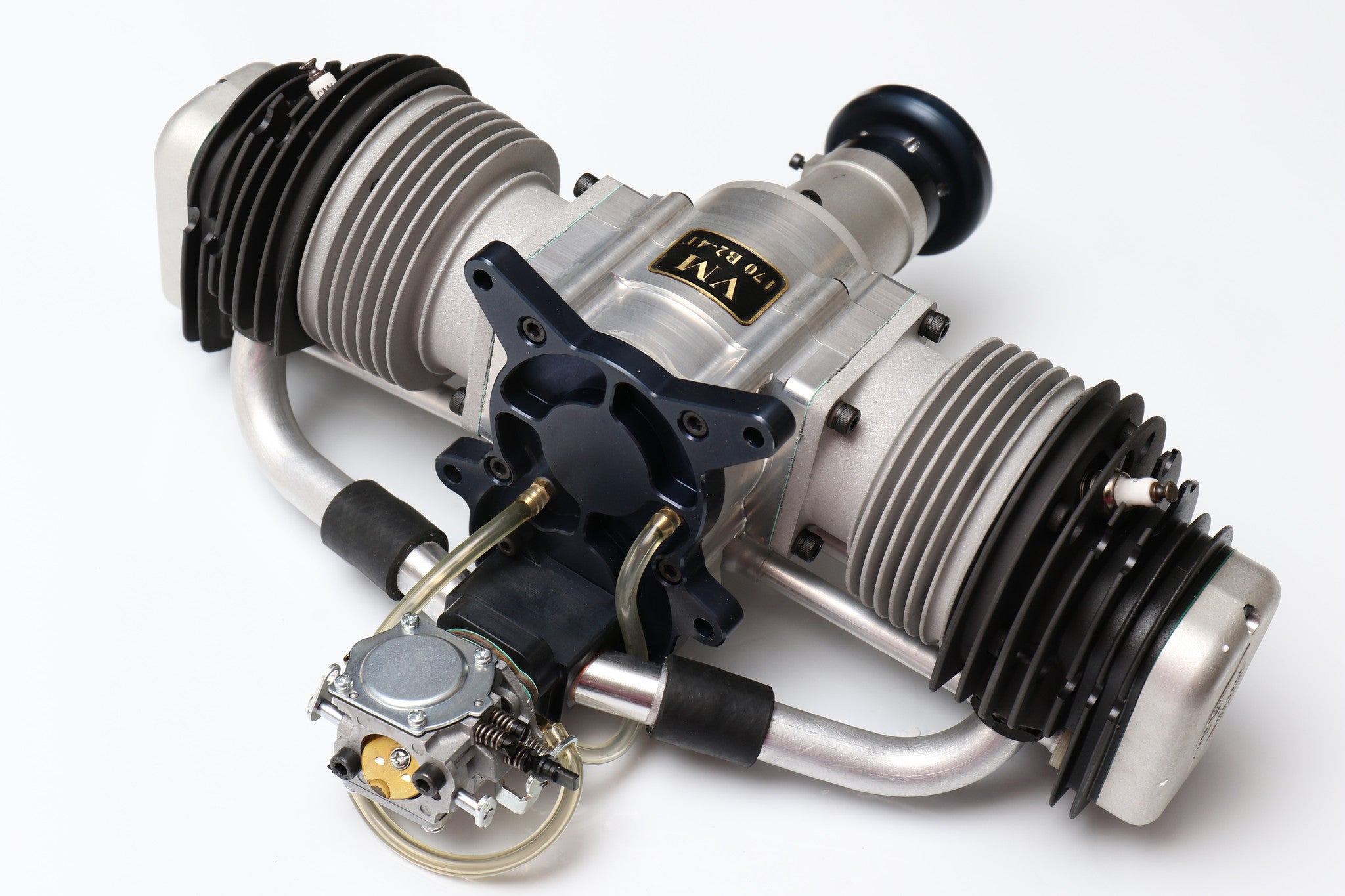

Valach by Fiala 170cc opposed twin cylinder gas 4stroke engine with electronic ignition
Make sure to research the recommended accessories at
Displacement: 170 cc
Output: ca. 13 hp
Bore: 52 mm
Stroke: 40 mm

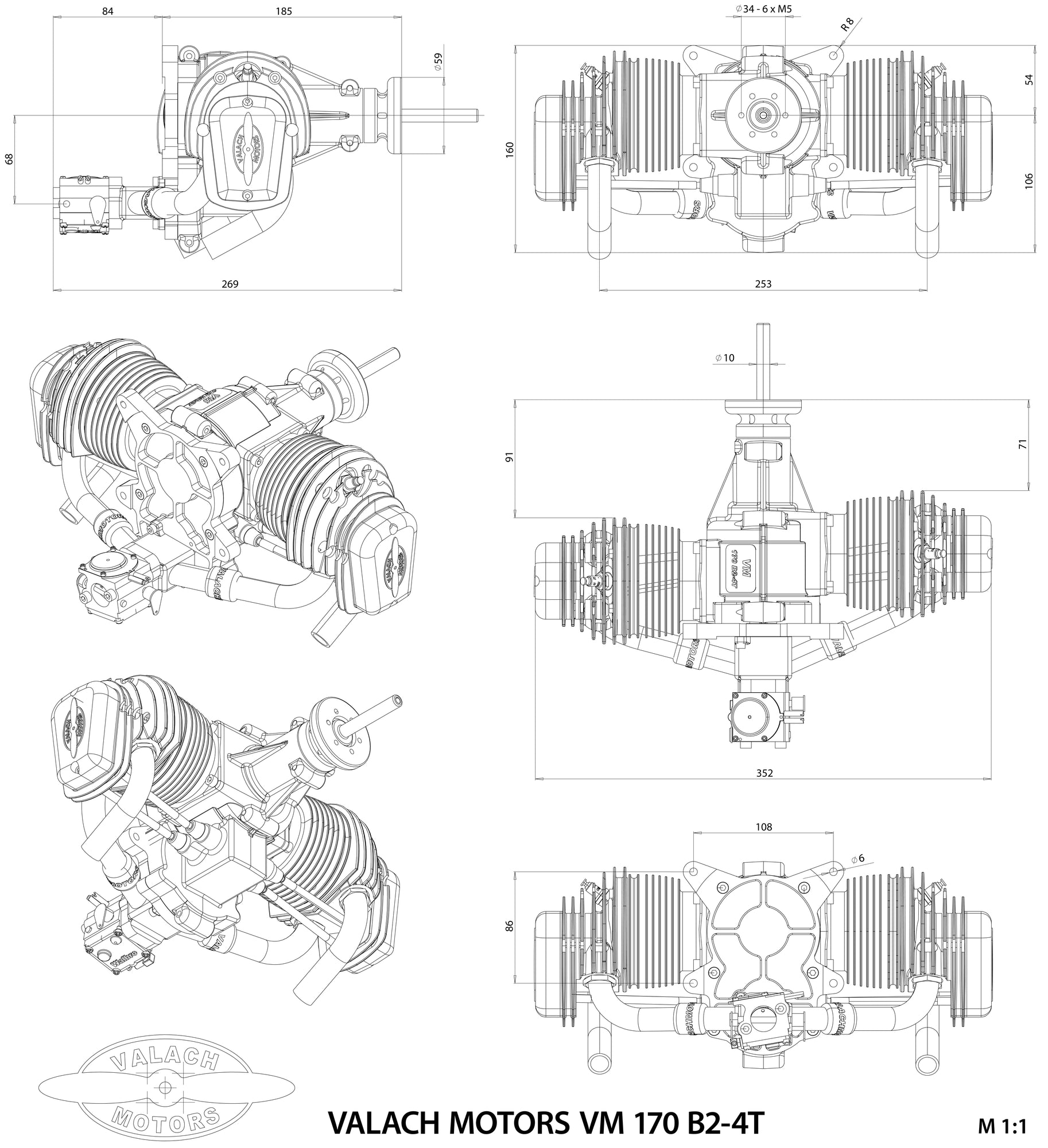

Width: 352 mm
Length from engine mount to prop hub: 185 mm
Weight: complete with ignition, two exhaust stacks, prop washer and prop bolts 5545 g
Ignition voltage range: 4.8 - 9 V
Idle RPM: 900 rpm
Max RPM: 6200 rpm

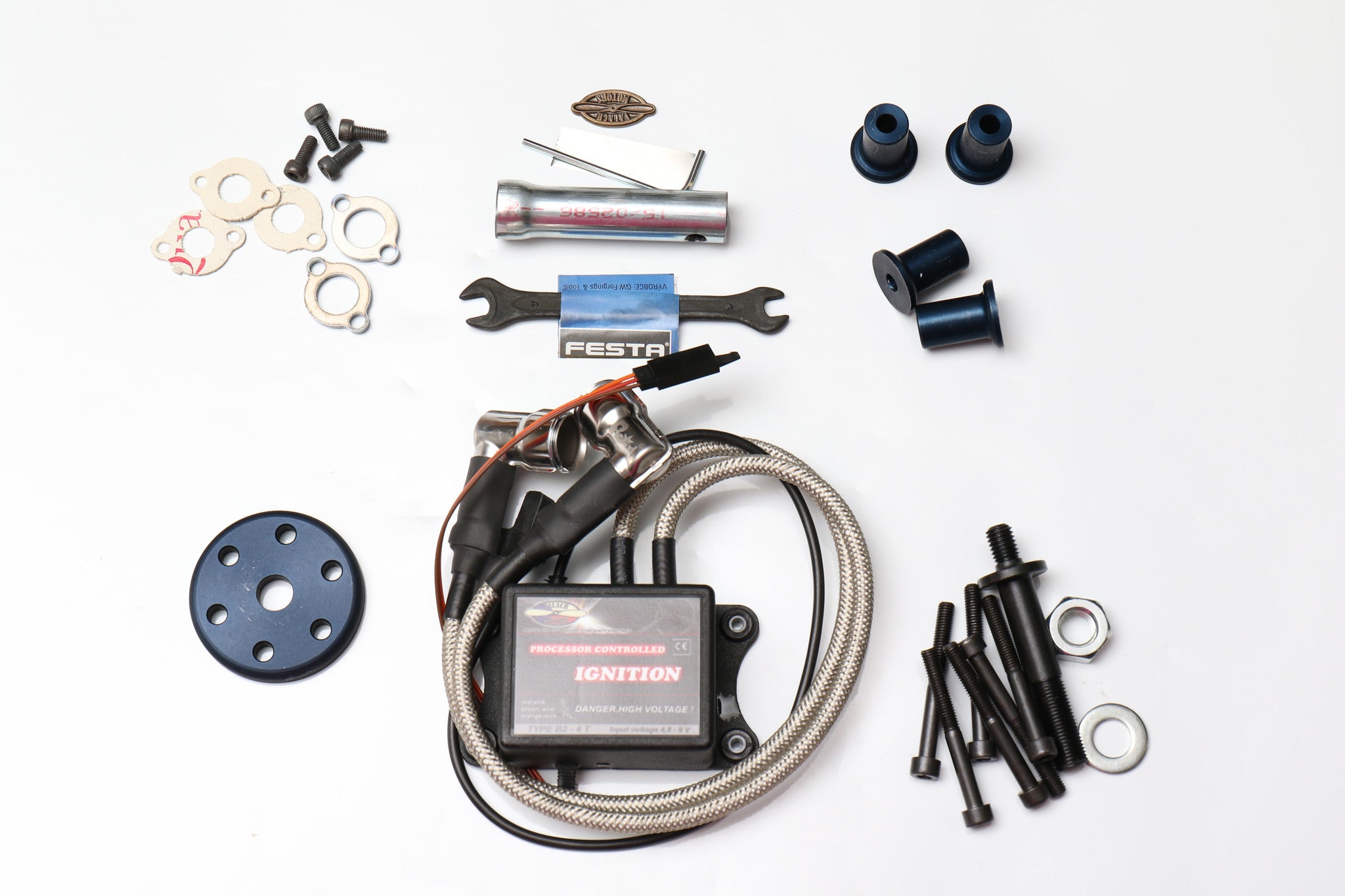

If my Valach Ignition has a second JR cable:
It offers you a kills switch functionality. Is for ON / OFF switching your ignition.
Hook that up to your receiver, set up a negative/positive mix and you are set to go.
Recommended prop: Please see that you run Valach engines on Fiala props.
Fiala owns and makes Valach engines, the development of the engines goes hand in hand with the development of their propellers, these is truly the only make that has a custom prop in mind.
Props are not simply paddles that drive an engine forward, they are sophisticated designs with well thought-out airfoils.
In this case engine are propeller are matched.
Dr. G's recommendation
Fiala 32 x 12 Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 32 x 14 Natural Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 32 x 14 Black Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 34 x 12 Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Fiala 34 x 14 Fiala Propellers - 2 Blade – Vogelsang Aeroscale
Due to customer request allow me to share with you some essentials that I personally recommend purchasing with your Valach engine.
Valach, just like 3W, Desert Aircraft and many other leading manufacturers of engines, do not supply an exhaust solution. Hence I recommend that you order one with your motor, to be found under Valach Exhaust Solutions on this site.
4-stroke gas engines do run on pre-mix oil lubrication. Said oil will be expelled through a drain on the back plate of the motor. Should you want to avoid a dirty airframe I recommend getting our oil catch system, to be found under accessories.
Furthermore I recommend getting the feeler gauge blade set, an ignition battery from us (we have two technologies available) and our external APS fuel pump for those who want the added safety of redundancy.
And last, a very important pointer: Valach motors were designed with Fiala props in mind. Should you want to run the shown pitch and diameter recommendations you WILL need to run a Fiala prop. Should you want to run props of a different brand you will most likely have to drop 2 in pitch due to Fiala's unique airfoil choice. Other brands plain run at a higher drag rate.
Bore 52 mm
Stroke 40 mm
RPM range 900 - 6200 RPM
Height from prop shaft or diameter on radial and twin 13.9 inches
Length mount to hub 7.3 inches
Weight 5545 gram
Fiala range 2 blade 30*14 - 36*14
Very convenient to have as the Valach does not come with preinstalled throttle and choke horn:
