Valach VM 60 S1-4T with Starter
Please contact email@example.com for possibly lower shipping rates outside the US.

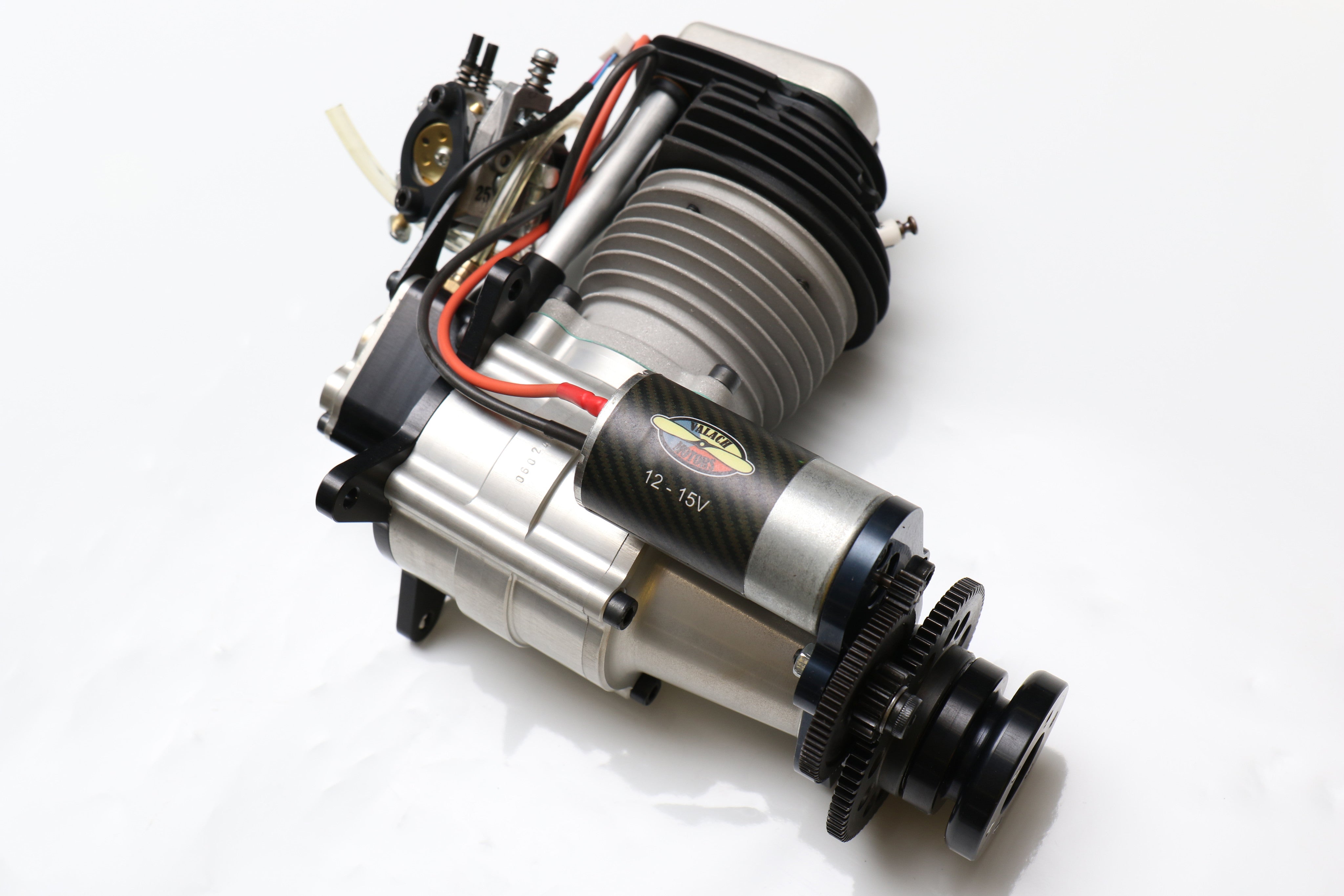

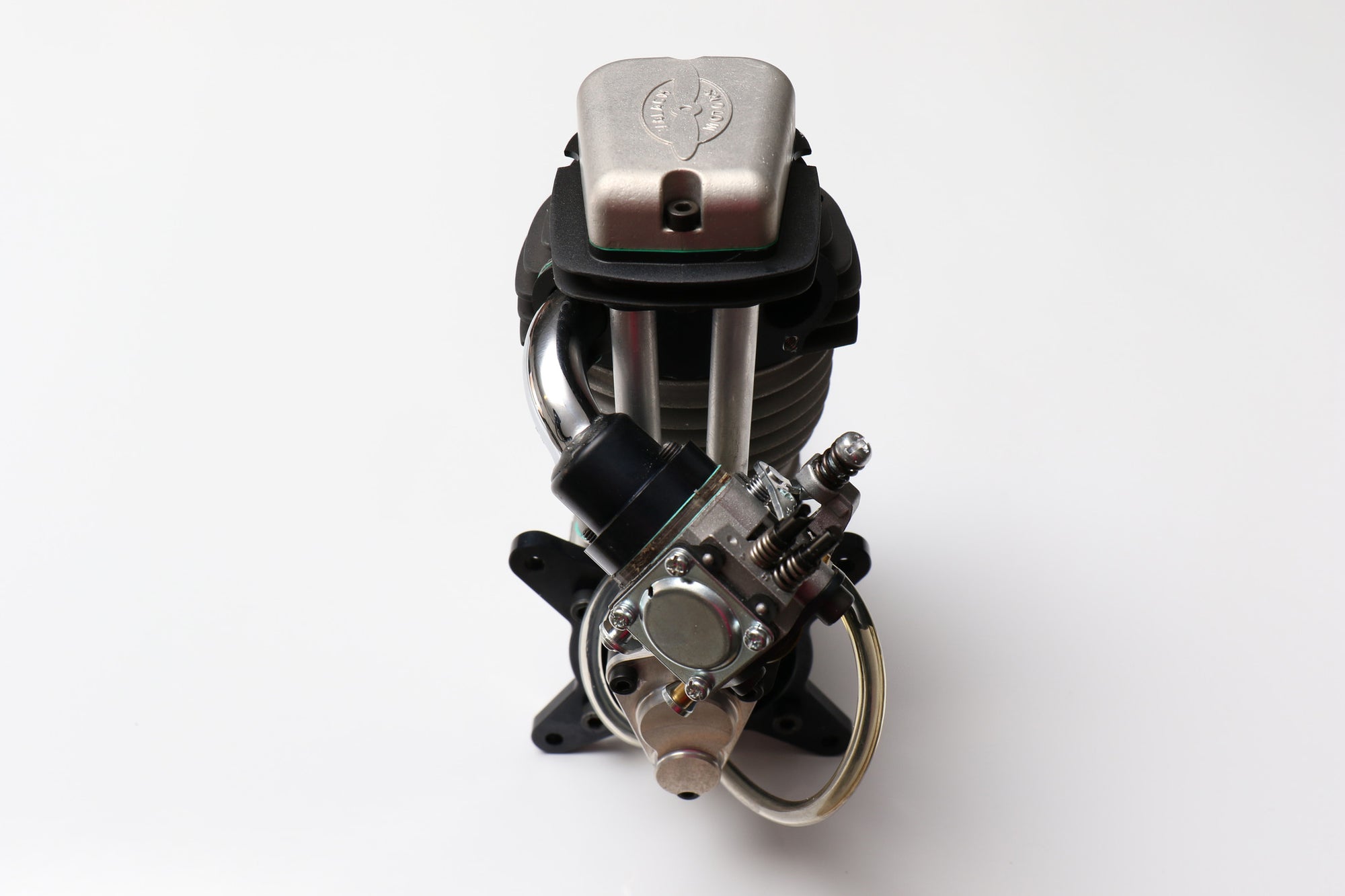

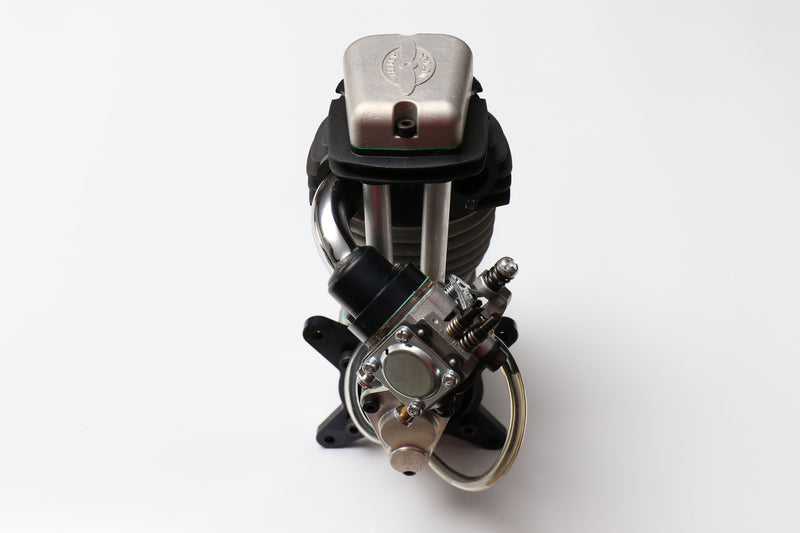

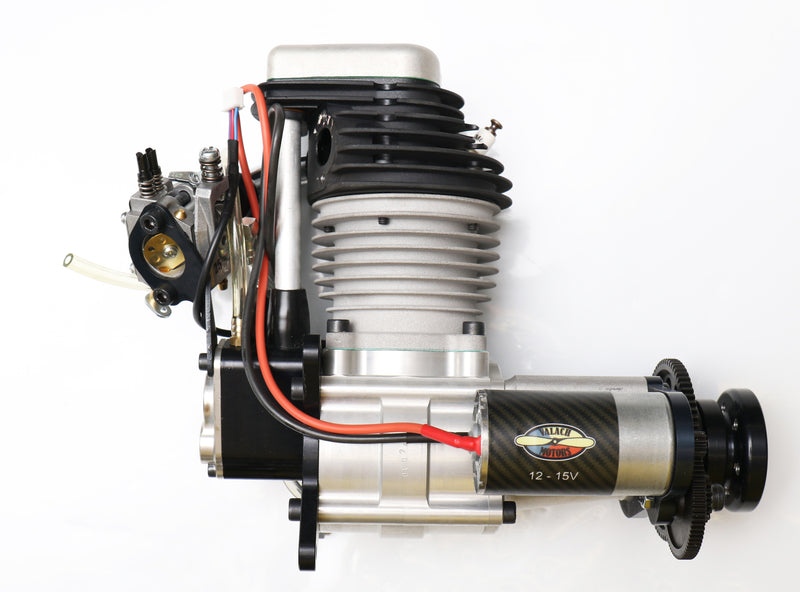

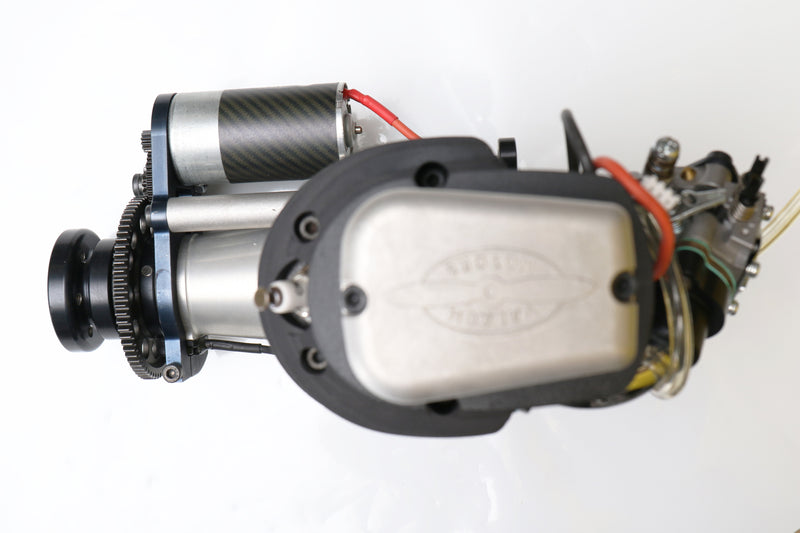

Valach 60cc single cylinder gas 4stroke engine with electronic ignition with build-in starter
Valach Automated Starter Controller:
Make sure to research the recommended accessories at
- Capacity: 60 cc
- Bore: 47 mm
- Stroke: 35 mm
- RPM range: 1000-6200 1/min

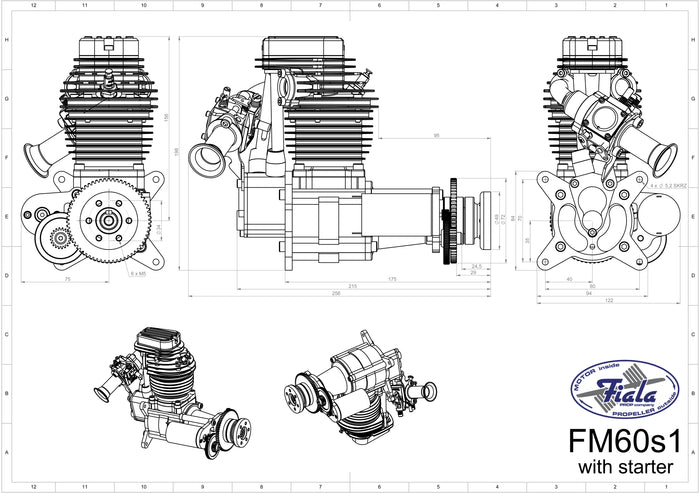

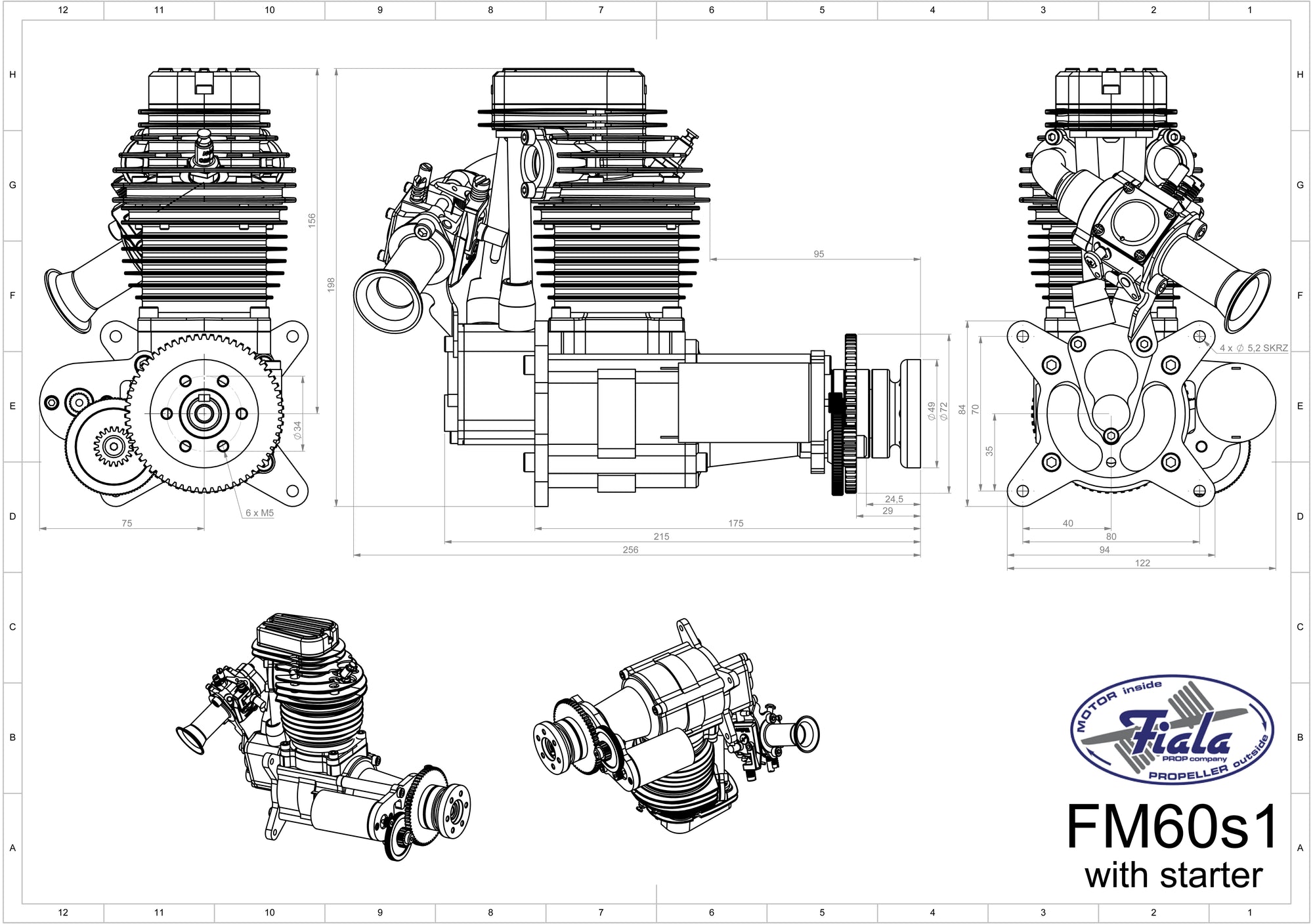

- Hight from crankshaft CL: 155 mm
- Length from engine mount to prop hub: 174 mm
- Engine weight including prop bolts and carb intake trumpet: 2720 g
- including ignition: 2840 g
- Ignition voltage range: 4.8 - 9 V
- Fiala Prop 2-blade: 24x12", 24x14", 26x10"
- Fiala Prop 3-blade: 22x12", 24x10"
Due to customer request allow me to share with you some essentials that I personally recommend purchasing with your Valach engine.
Valach, just like 3W, Desert Aircraft and many other leading manufacturers of engines, do not supply an exhaust solution. Hence I recommend that you order one with your motor, to be found under Valach Exhaust Solutions on this site.
4-stroke gas engines do run on pre-mix oil lubrication. Said oil will be expelled through a drain on the back plate of the motor. Should you want to avoid a dirty airframe I recommend getting our oil catch system, to be found under accessories.
Furthermore I recommend getting the feeler gauge blade set, an ignition battery from us (we have two technologies available) and our external APS fuel pump for those who want the added safety of redundancy.
And last, a very important pointer: Valach motors were designed with Fiala props in mind. Should you want to run the shown pitch and diameter recommendations you WILL need to run a Fiala prop. Should you want to run props of a different brand you will most likely have to drop 2 in pitch due to Fiala's unique airfoil choice. Other brands plain run at a higher drag rate.
Bore 47 mm
Stroke 35 mm
RPM range 1000-6200 rpm
Height from prop shaft or diameter on radial and twin 6.1 inches
Length mount to hub 6.2 inches
Weight 2360 gram, Starter 2840
Fiala range 2 blade 22*14 (warbird prop) - 24*14
Fiala range 3 blade 22*12, 24*10
Very convenient to have as the Valach does not come with preinstalled throttle and choke horn:
