Valach by Fiala VM 210 B2-4T with starter

Please contact support@aeroscale.shop for possibly lower shipping rates outside the US.

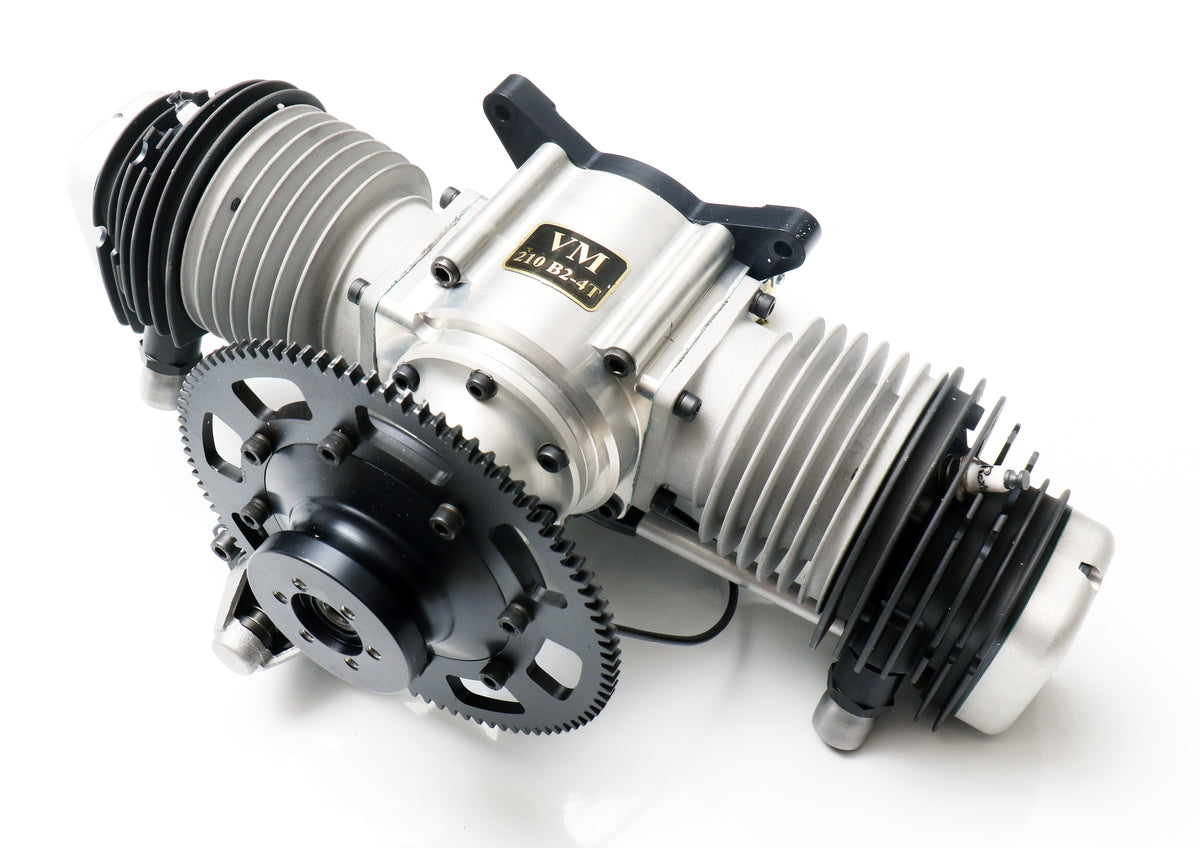

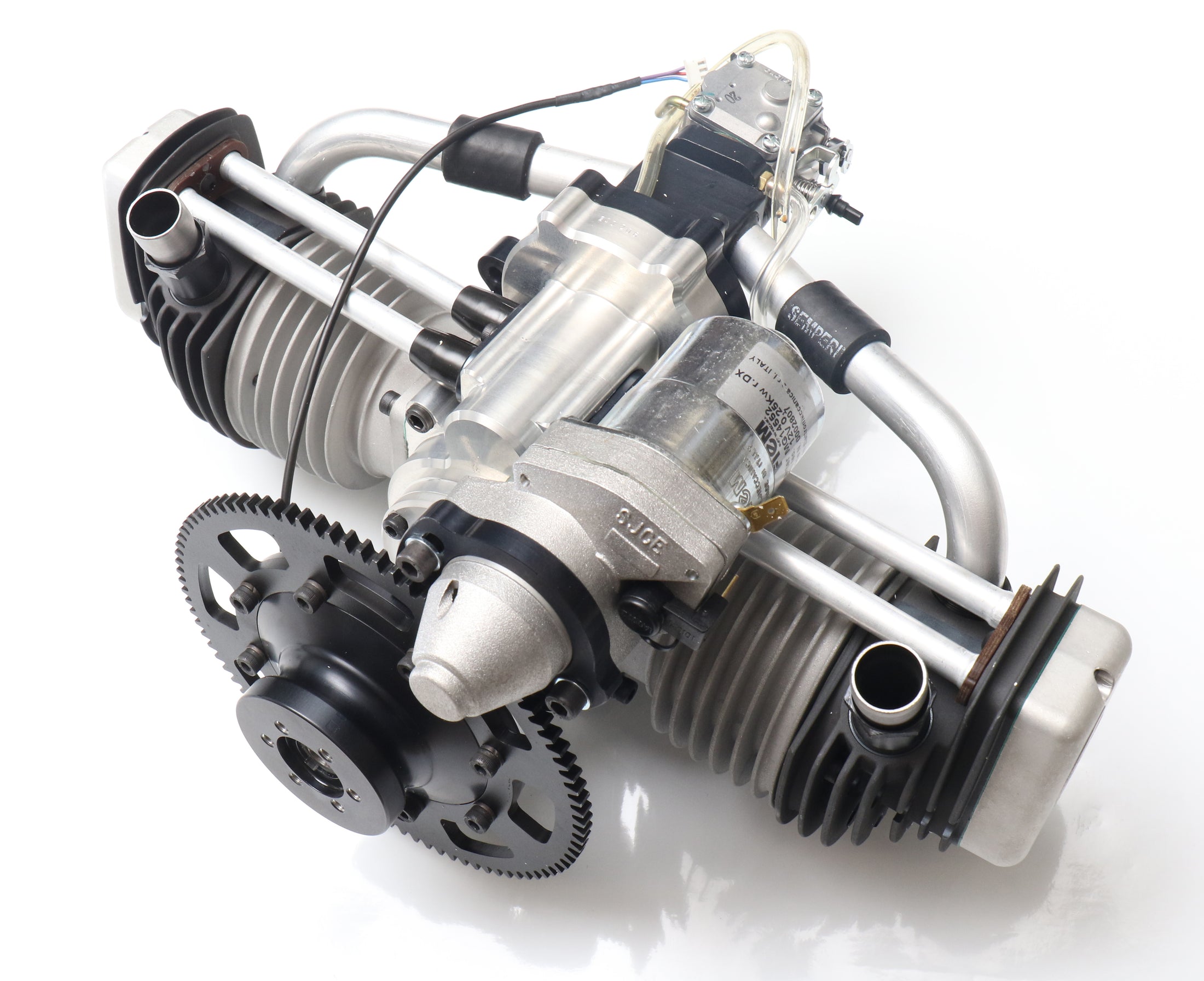

Valach by Fiala 210cc opposed twin cylinder gas 4stroke engine with electronic ignition and starter

Valach Automated Starter Controller:

https://www.aeroscale.shop/collections/valach-accessories/products/fiala-automated-starter-controller

Make sure to research the recommended accessories at

https://www.aeroscale.shop/collections/valach-accessories

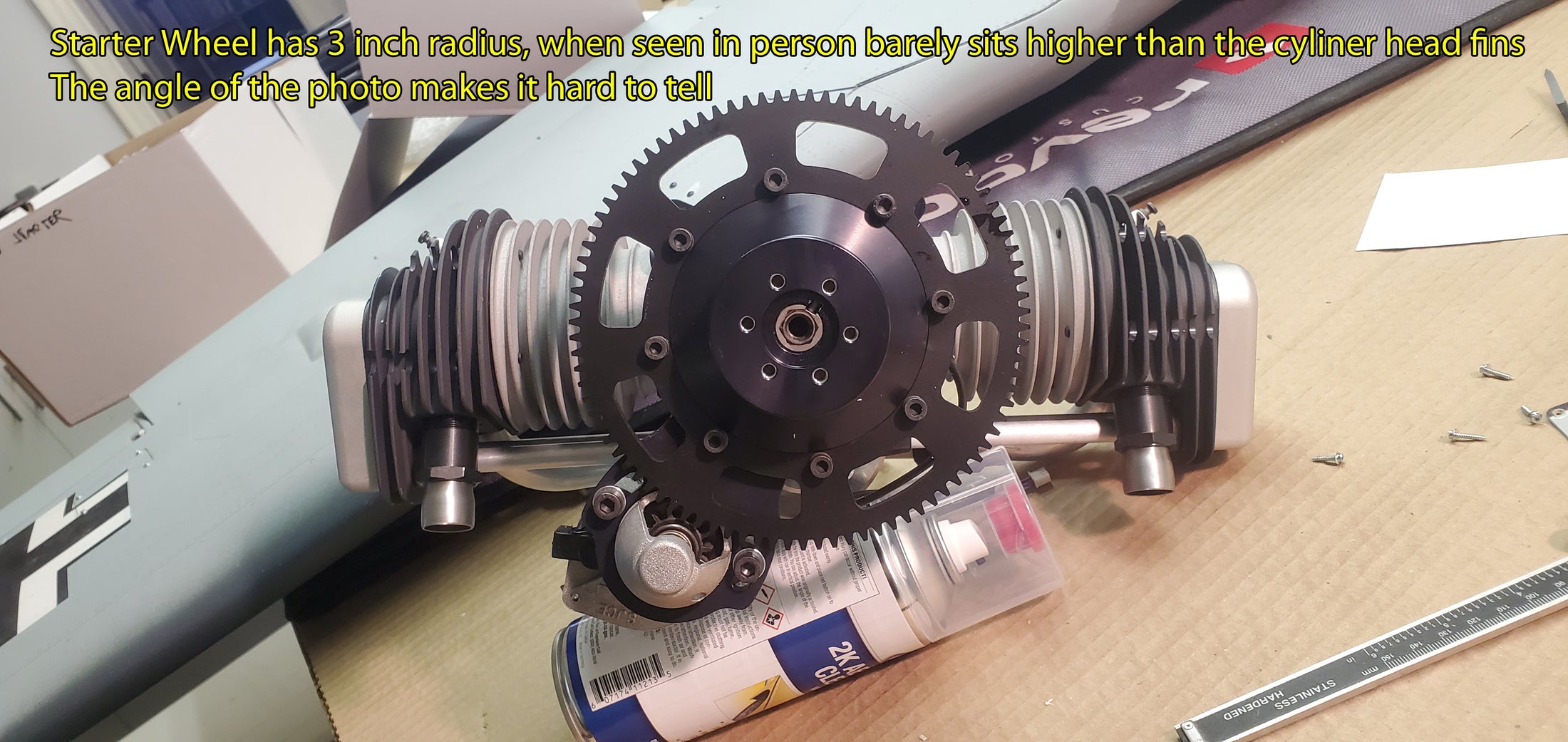

Starter Ring Diameter: 6 inches

Hence, add a 3 inch radius from the prop shaft to get the size


    Displacement:  210 cc
    Power:  ca. 16 hp
    Bore:  52 mm
    Stroke:  50 mm
    Width including valve covers:  385 mm
    Length from engine mount to prop hub:  185 mm
    Weight: complete with ignition, two exhaust stacks, prop washer and prop bolts  6125 g
    Ignition voltage range:  4.8 - 9 V
    Idle RPM:  800
    Max RPM:  5500


Click for Dimensions of the engine without starter



If my Valach Ignition has a second JR cable:

It offers you a kills switch functionality. Is for ON / OFF switching your ignition.

Hook that up to your receiver, set up a negative/positive mix and you are set to go.


Recommended prop: Please see that you run Valach engines on Fiala props.

Fiala owns and makes Valach engines, the development of the engines goes hand in hand with the development of their propellers, these is truly the only make that has a custom prop in mind.

Props are not simply paddles that drive an engine forward, they are sophisticated designs with well thought-out airfoils.

In this case engine are propeller are matched.

Dr. G's recommendation

2-Blade:

Fiala 34 x 16 Natural Fiala Propellers - 2 Blade – Vogelsang Aeroscale

Fiala 34 x 16 Black Fiala Propellers - 2 Blade – Vogelsang Aeroscale

Fiala 46 x 14 Fiala Propellers - 2 Blade – Vogelsang Aeroscale



Due to customer request allow me to share with you some essentials that I personally recommend purchasing with your Valach engine.

Valach, just like 3W, Desert Aircraft and many other leading manufacturers of engines, do not supply an exhaust solution. Hence I recommend that you order one with your motor, to be found under Valach Exhaust Solutions on this site.

https://www.aeroscale.shop/collections/valach-exhaust-solutions

4-stroke gas engines do run on pre-mix oil lubrication. Said oil will be expelled through a drain on the back plate of the motor. Should you want to avoid a dirty airframe I recommend getting our oil catch system, to be found under accessories.

Furthermore I recommend getting the feeler gauge blade set, an ignition battery from us (we have two technologies available) and our external APS fuel pump for those who want the added safety of redundancy.

And last, a very important pointer: Valach motors were designed with Fiala props in mind. Should you want to run the  shown pitch and diameter recommendations you WILL need to run a Fiala prop. Should you want to run props of a different brand you will most likely have to drop 2 in pitch due to Fiala's unique airfoil choice. Other brands plain run at a higher drag rate.

















Capacity    210cc
Bore    52 mm
Stroke    50 mm
RPM range    800 - 5500 RPM
Height from prop shaft or diameter on radial and twin    15.15 inches
Length mount to hub    7.3 inches
Weight    6125 gram

Very convenient to have as the Valach does not come with preinstalled throttle and choke horn:
https://www.aeroscale.shop/collections/valach-accessories/products/kunkel-cnc-throttle-and-choke-lever-set
