Valach VM 210 B2-4T Mark II

$3,195.00

Please contact support@vogelsang-aeroscale.com for possibly lower shipping rates outside the US.

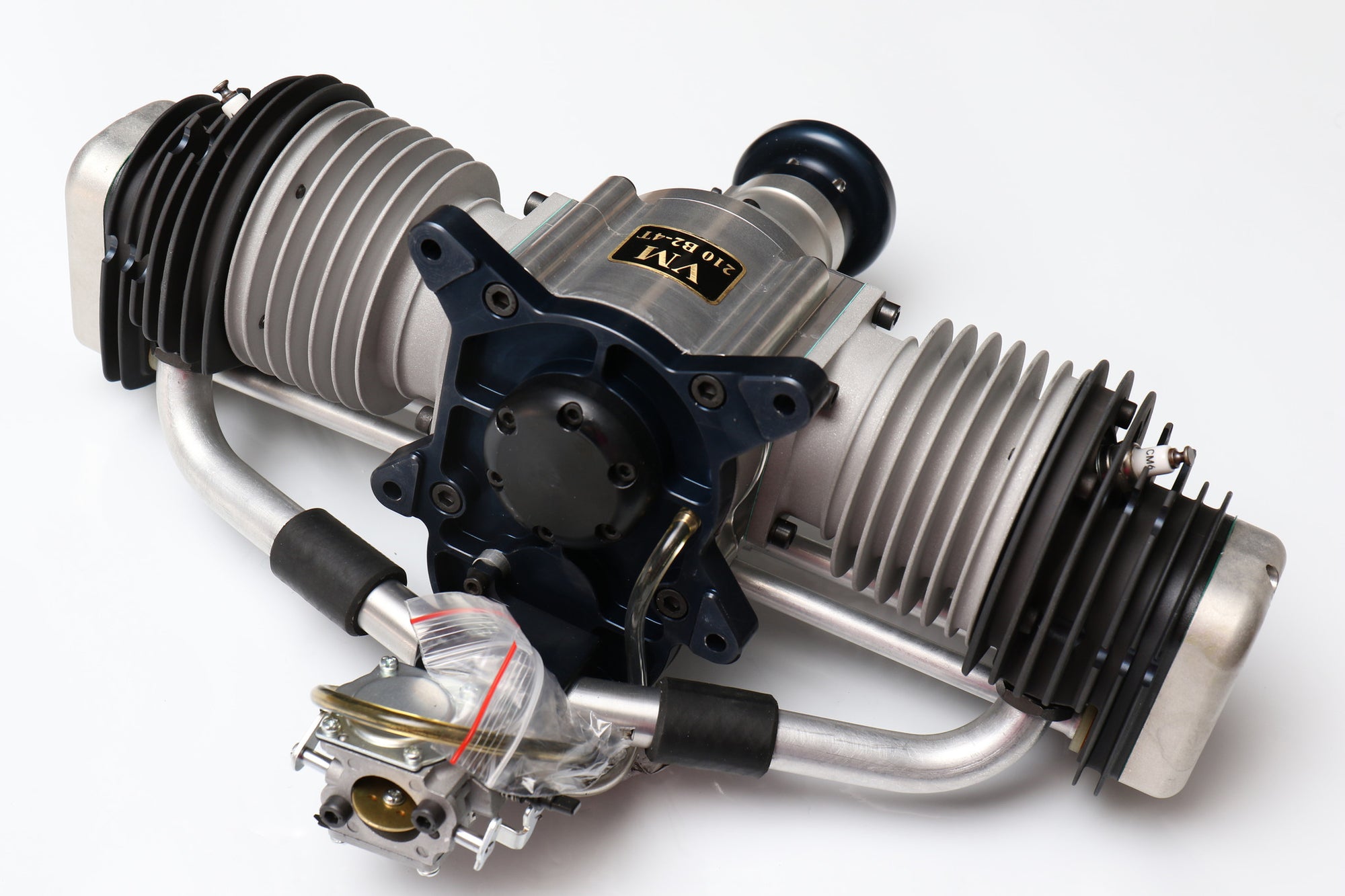

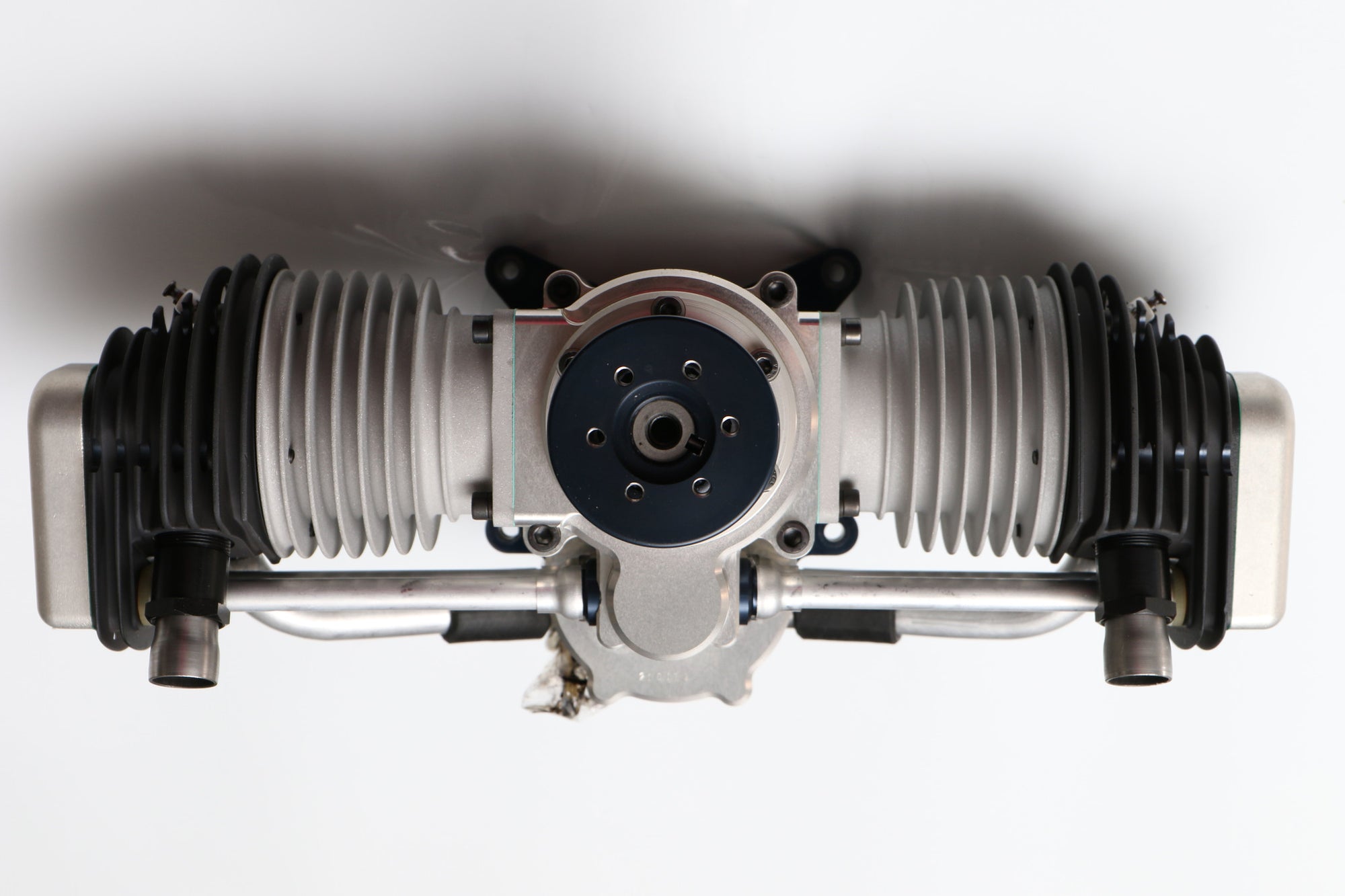

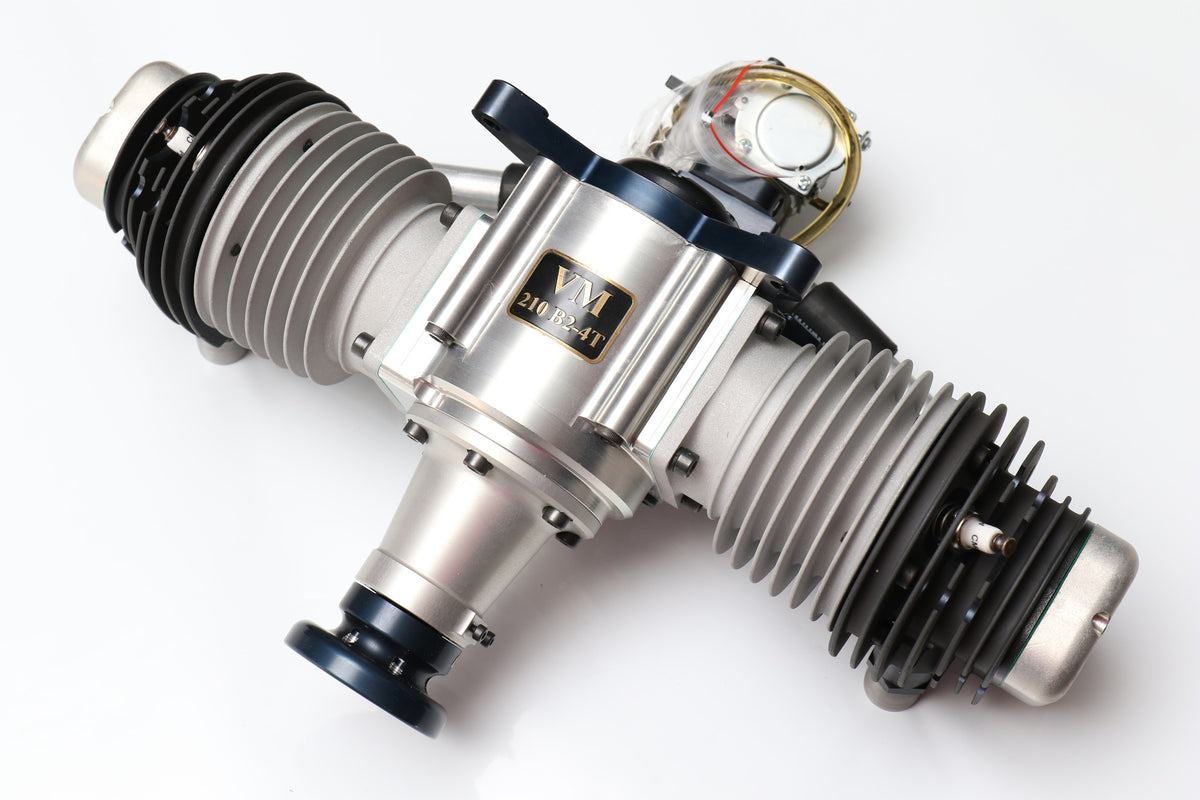

Valach 210cc opposed twin cylinder gas 4stroke engine with electronic ignition - Mark II

Make sure to research the recommended accessories at

https://www.aeroscale.shop/collections/valach-accessories




    Displacement:  210 cc
    Power:  ca. 16 hp
    Bore:  52 mm
    Stroke:  50 mm
    Width including valve covers:  385 mm
    Length from engine mount to prop hub:  185 mm
    Weight: complete with ignition, two exhaust stacks, prop washer and prop bolts  6125 g
    Ignition voltage range:  4.8 - 9 V
    Idle RPM:  800
    Max RPM:  5500
    Fiala propellers 2-blade: 36x14", 36x12", 34x16"
    Static thrust with 36x14" FIALA prop: 35 kp at 4800 rpm

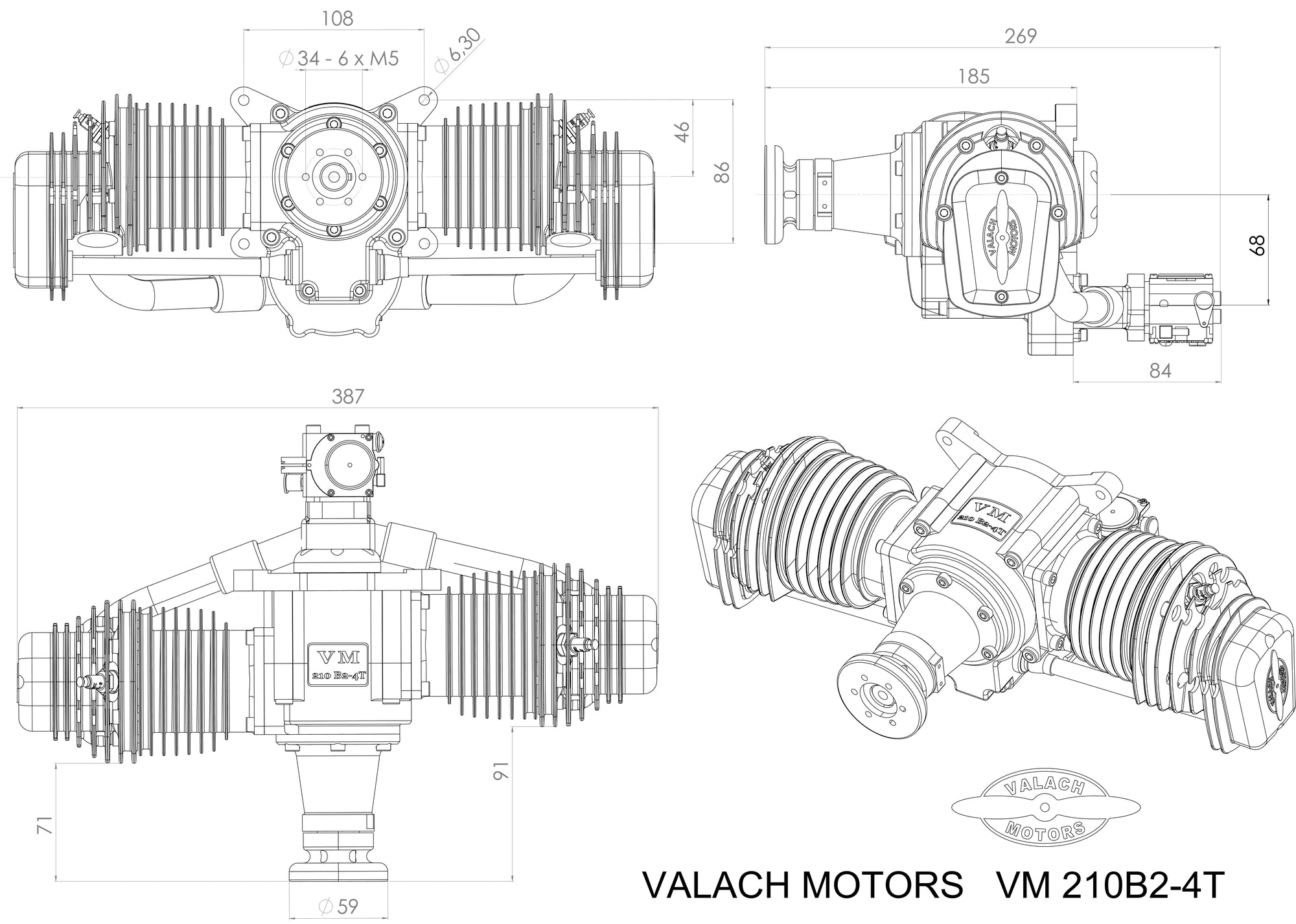

Click for Dimensions



 Due to customer request allow me to share with you some essentials that I personally recommend purchasing with your Valach engine.

Valach, just like 3W, Desert Aircraft and many other leading manufacturers of engines, do not supply an exhaust solution. Hence I recommend that you order one with your motor, to be found under Valach Exhaust Solutions on this site.

https://www.aeroscale.shop/collections/valach-exhaust-solutions

4-stroke gas engines do run on pre-mix oil lubrication. Said oil will be expelled through a drain on the back plate of the motor. Should you want to avoid a dirty airframe I recommend getting our oil catch system, to be found under accessories.

Furthermore I recommend getting the feeler gauge blade set, an ignition battery from us (we have two technologies available) and our external APS fuel pump for those who want the added safety of redundancy.



And last, a very important pointer: Valach motors were designed with Fiala props in mind. Should you want to run the  shown pitch and diameter recommendations you WILL need to run a Fiala prop. Should you want to run props of a different brand you will most likely have to drop 2 in pitch due to Fiala's unique airfoil choice. Other brands plain run at a higher drag rate.



80 LBS airplane:



Capacity    210cc
Bore    52 mm
Stroke    50 mm
RPM range    800 - 5500 RPM
Height from prop shaft or diameter on radial and twin    15.15 inches
Length mount to hub    7.3 inches
Weight    6125 gram

Very convenient to have as the Valach does not come with preinstalled throttle and choke horn:
https://www.aeroscale.shop/collections/valach-accessories/products/kunkel-cnc-throttle-and-choke-lever-set
