Valach by Fiala VM 280 B4-4T

$3,975.00

Fiala, the manufacturers of the Valach engines, are a company that caters to the military; hence this is military grade equipment under constant development, it is and always will the most advanced engine manufacturer on the market.

At the moment we carry over 20 different models of Fiala engines.

Please contact info@aeroscale.shop for customized and lower shipping rates for shipping outside the US.

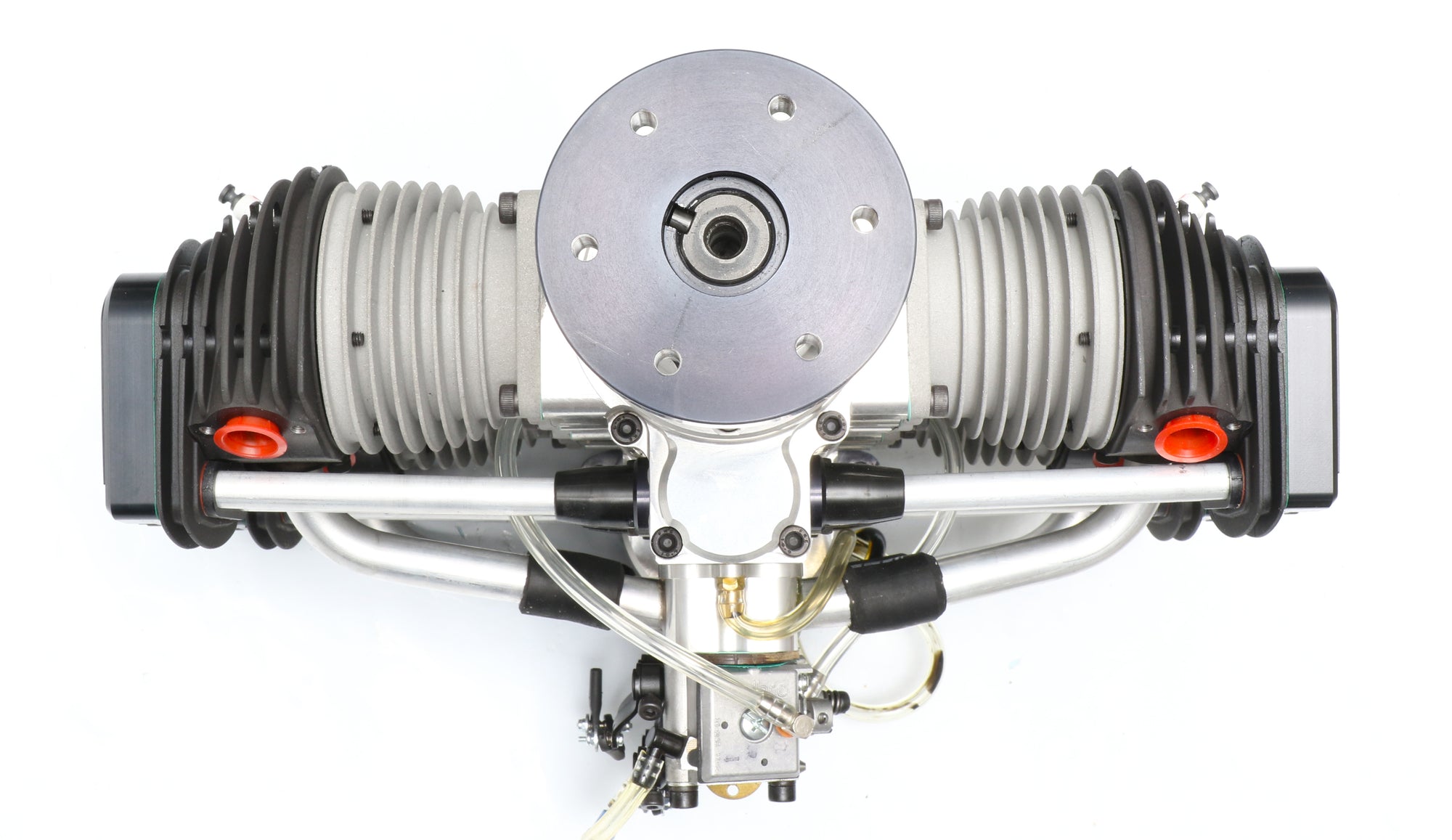

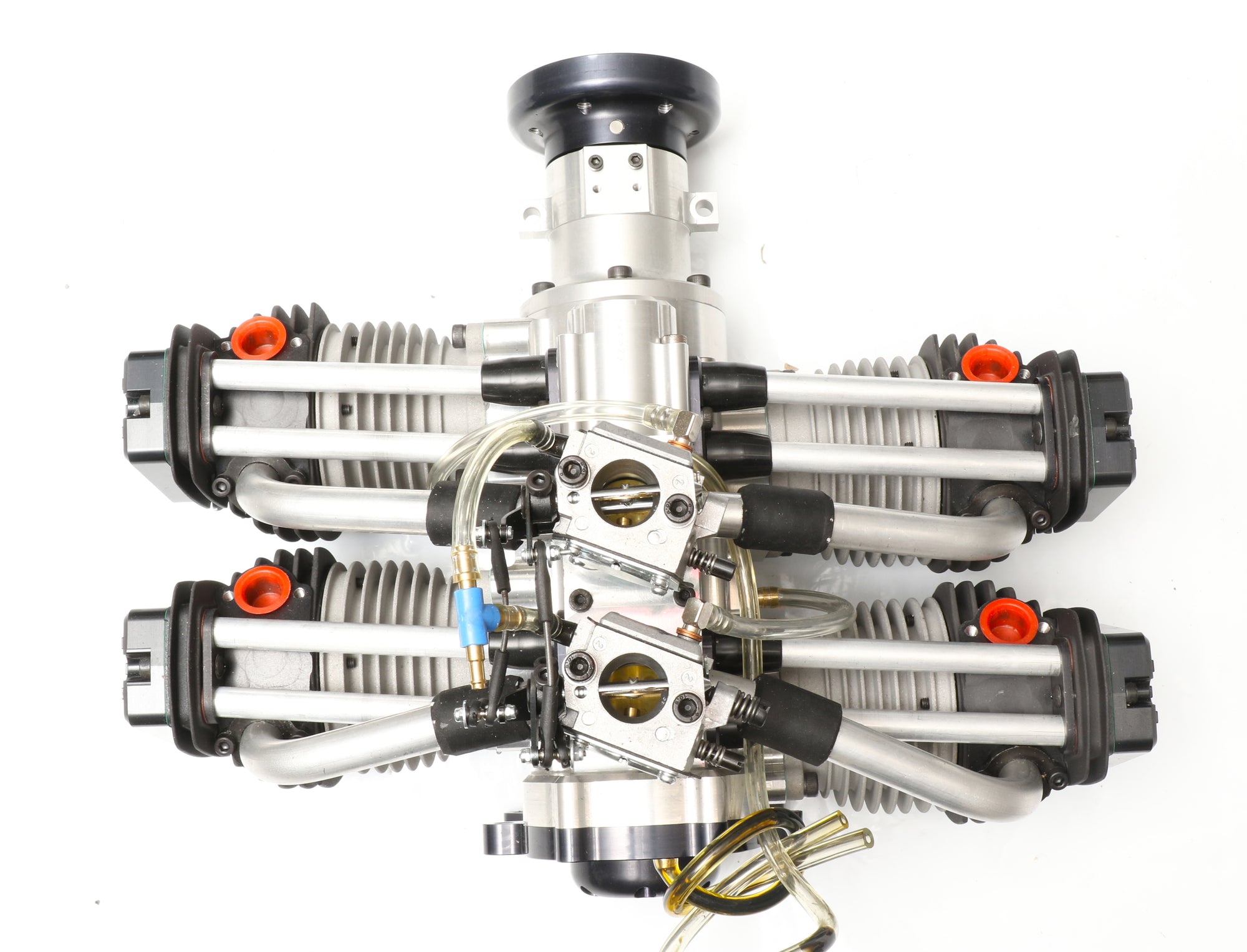

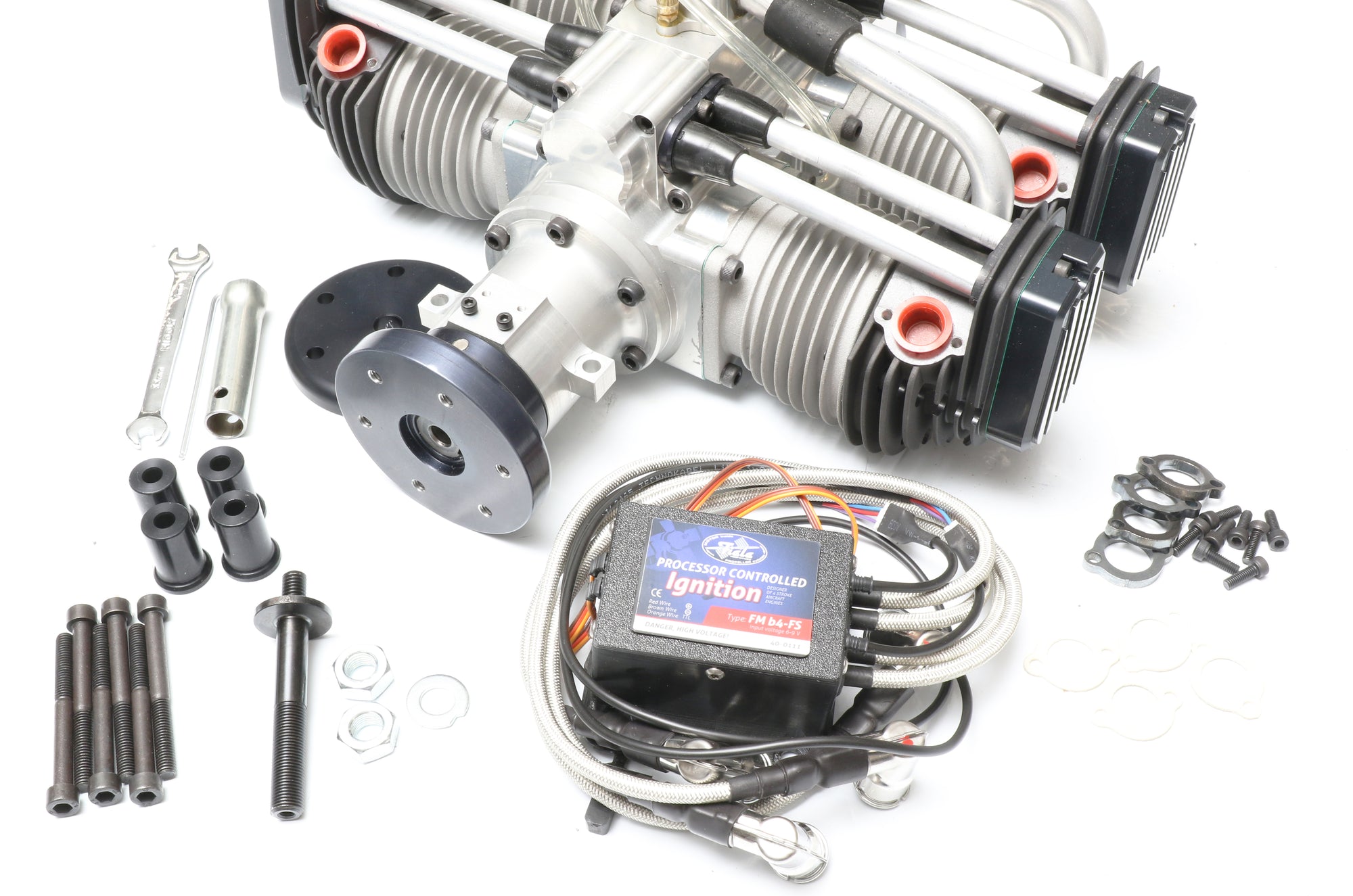

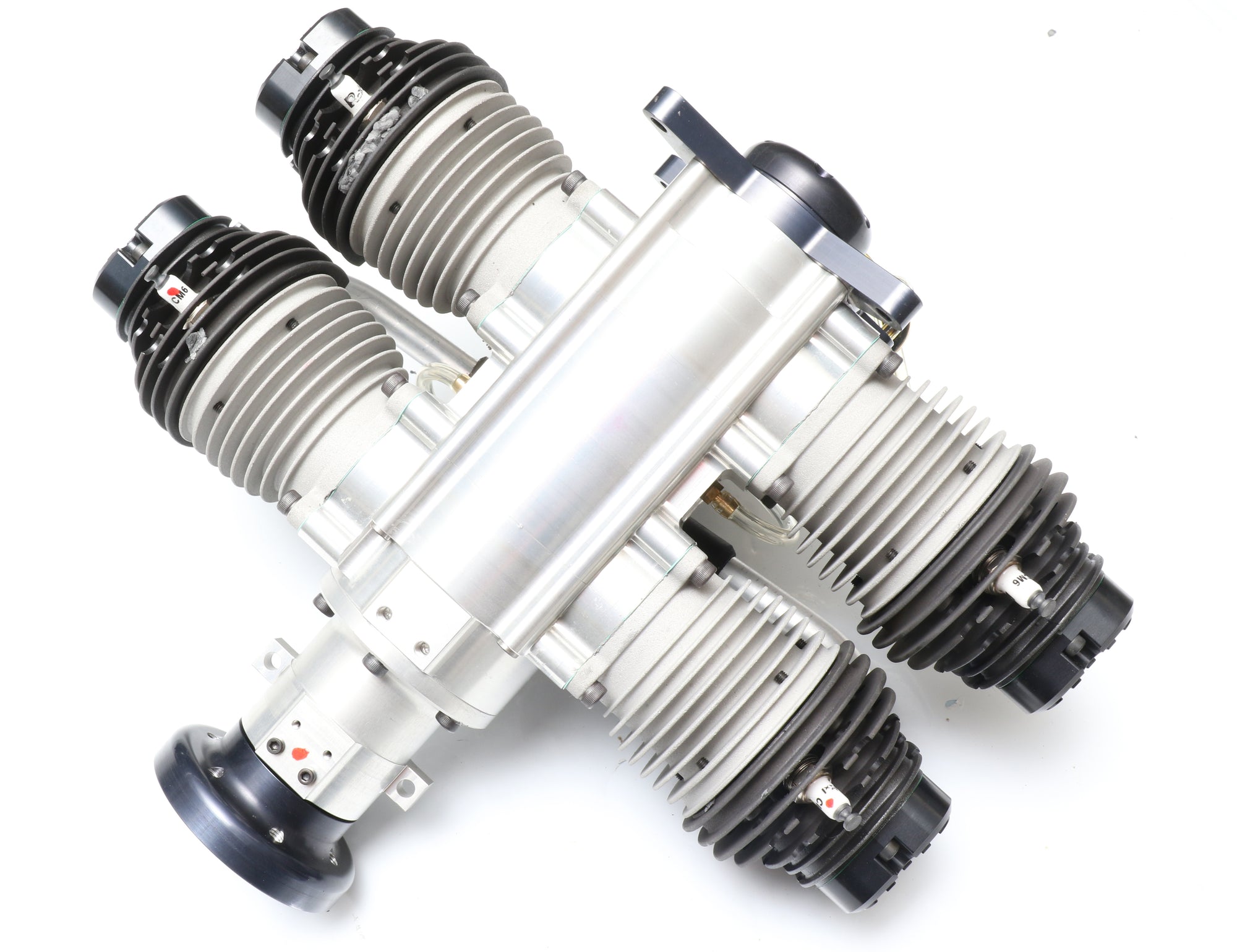

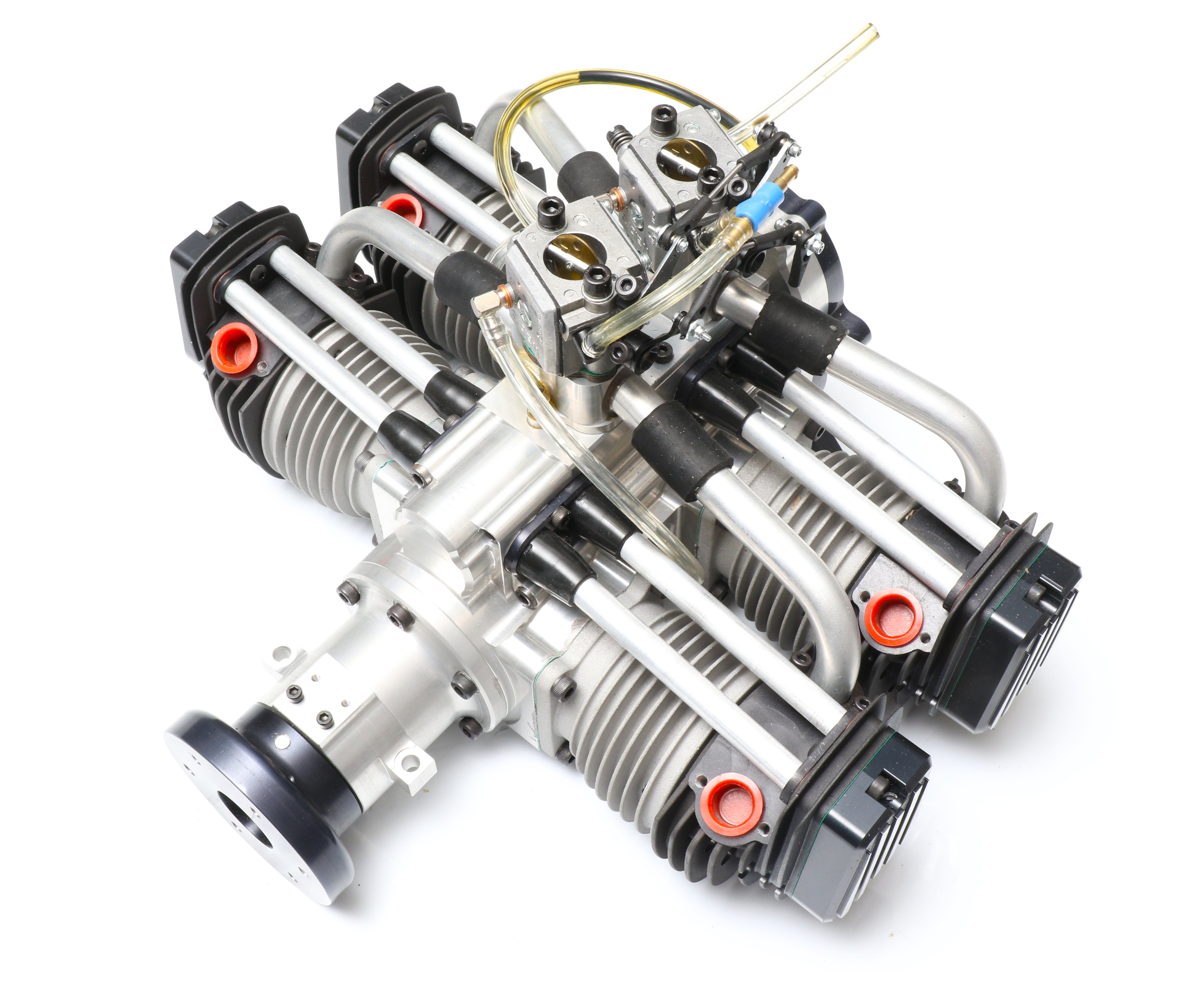

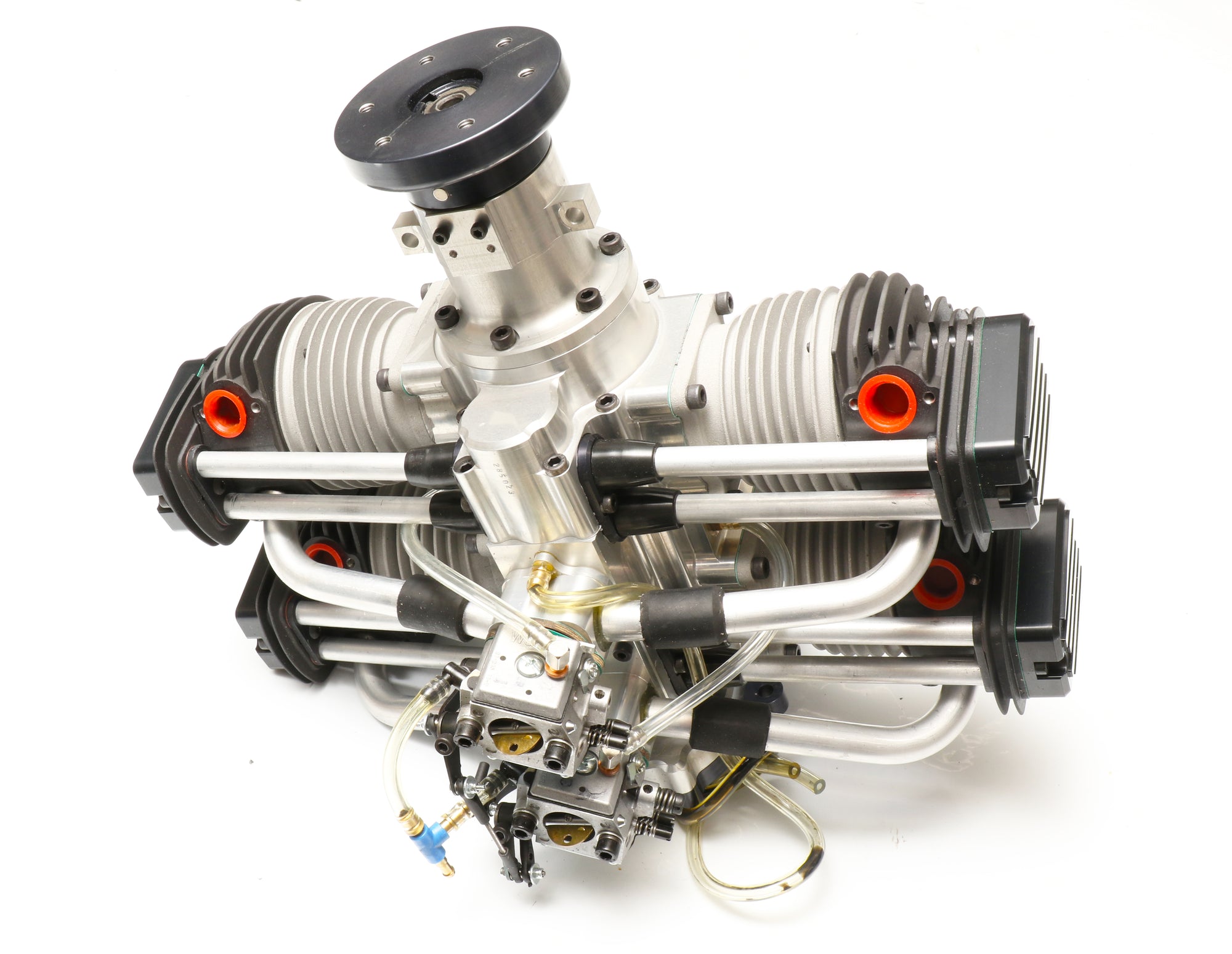

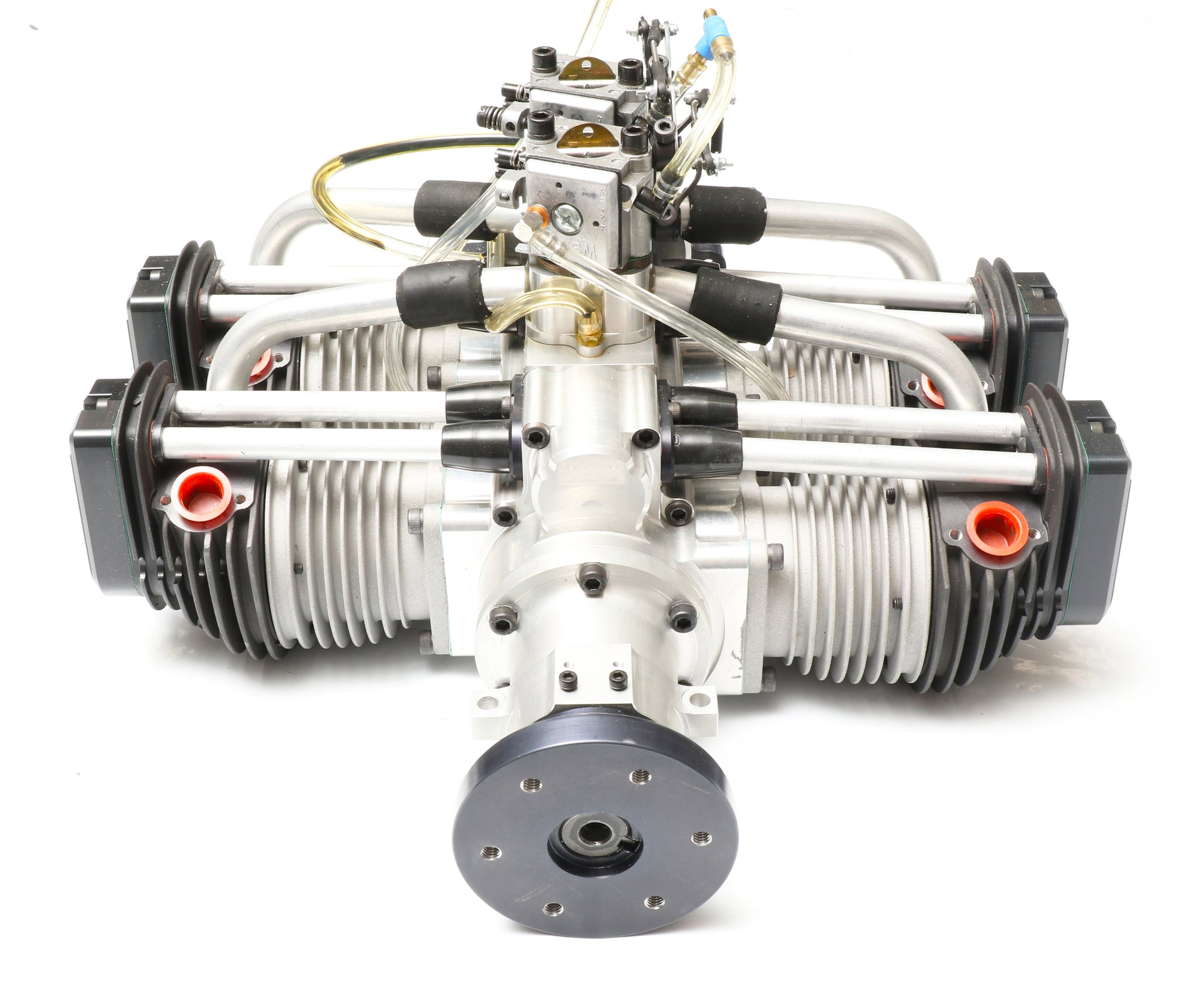

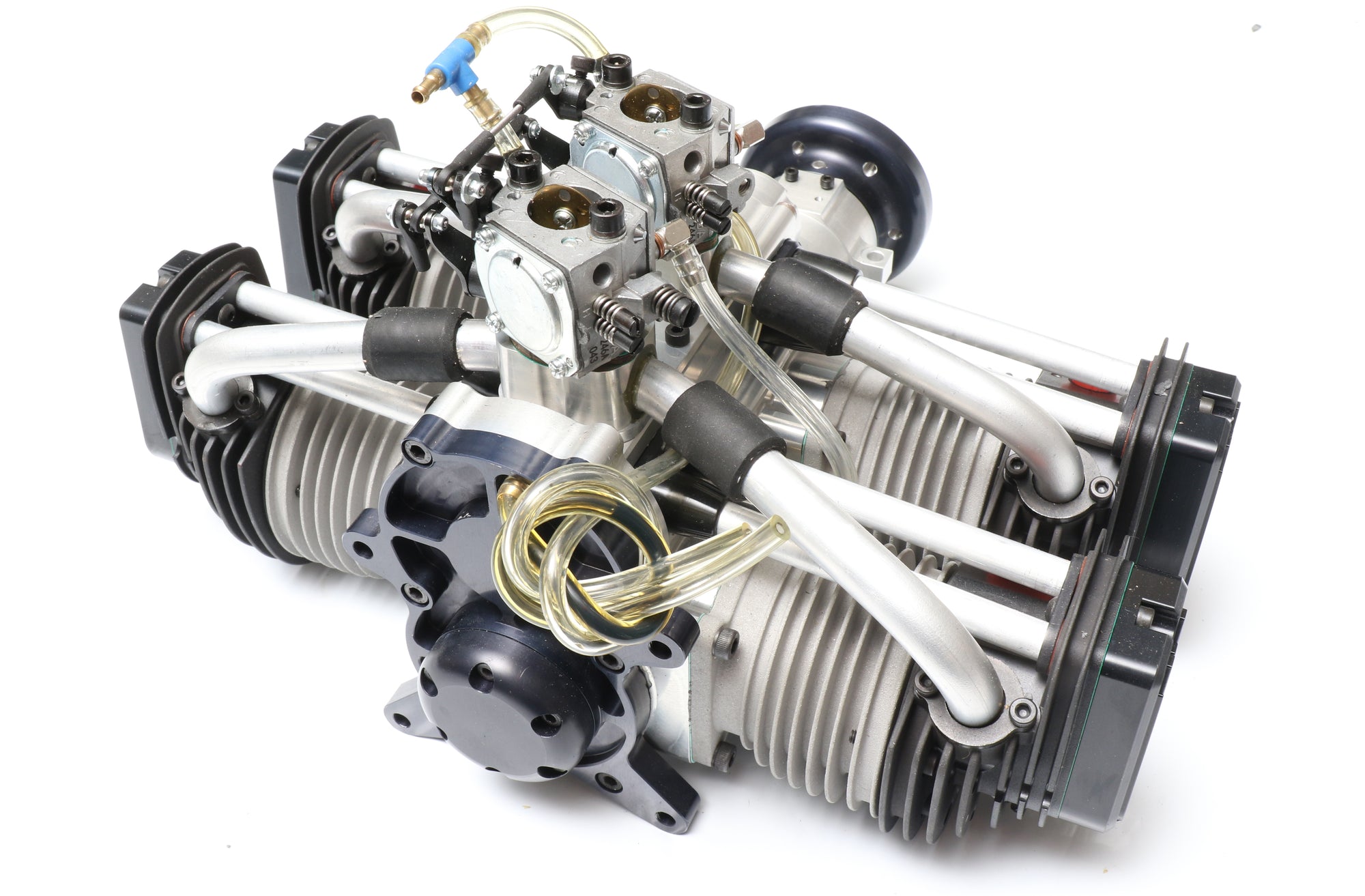

Valach by Fiala 280cc opposed twin 4 cylinder gas 4stroke engine with electronic ignition

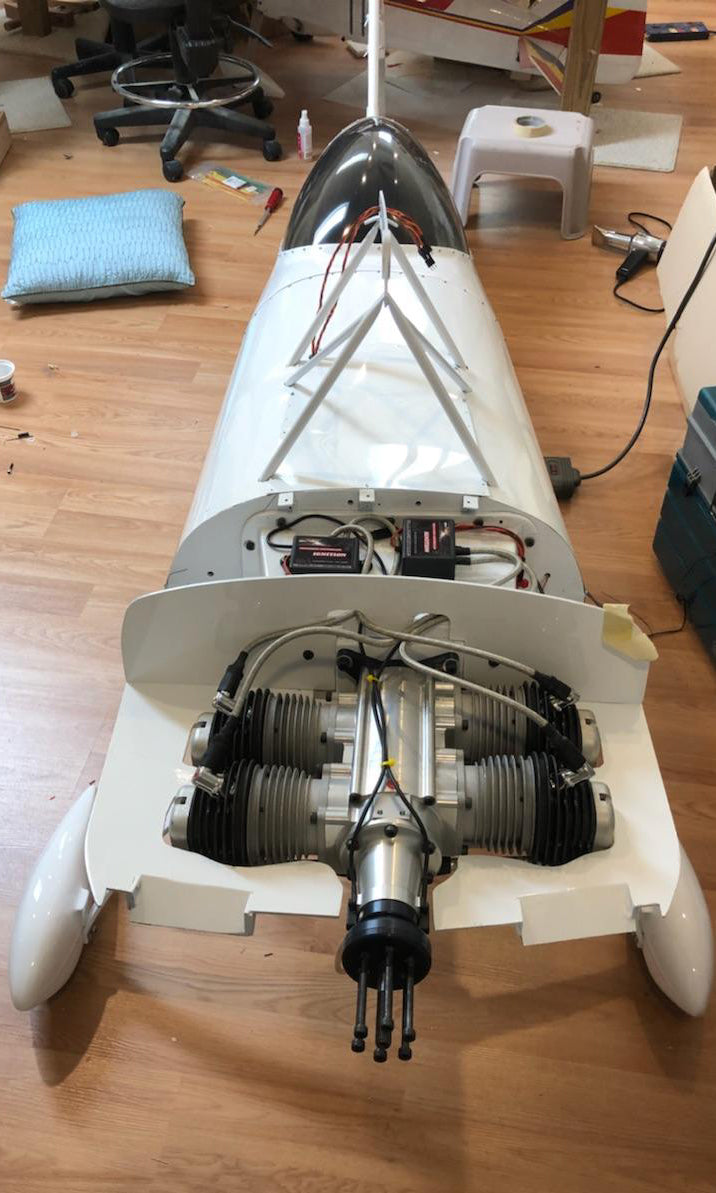

This is THE powerhouse motor for your half scale aerobatic projects such as the EMHW aerobatic airplane



  • Displacement: 280 cc
  • Bore: 47 mm
  • Stroke: 40 mm
  • Width including valve covers:  332 mm
  • Length from engine mount to prop hub:  272 mm
  • Engine weight, including ignition:  7840 g
  • Ignition voltage range:  4,8 - 9 V

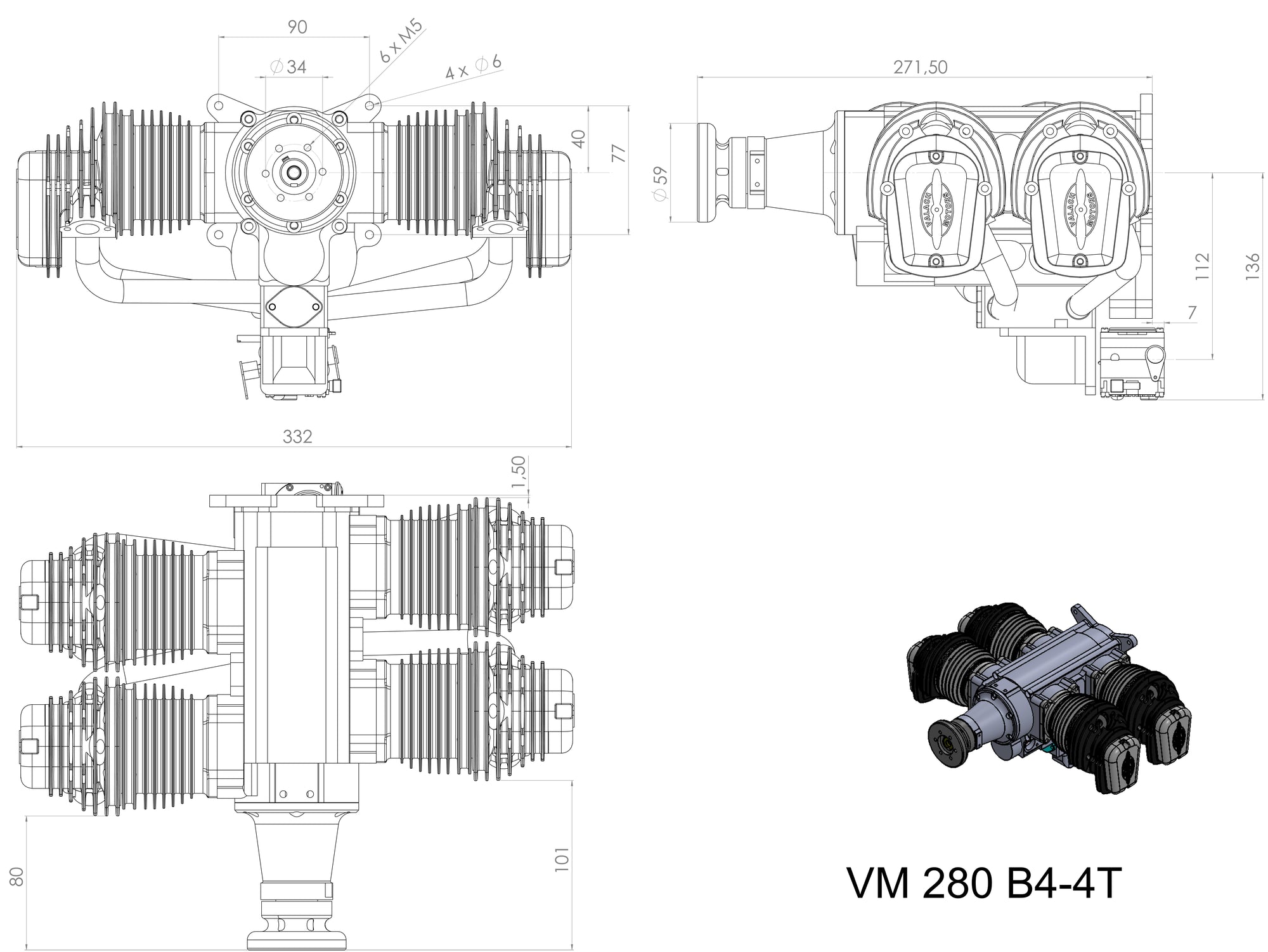

Click for Dimensions

Current included Standoffs: 27mm



Fiala is the only 4-stroke company in the world which produces both the engines and the propellers developed and designed to be used with them. They go hand in hand.

The Fiala propellers have quickly become a staple in the global UAV industry as no other propeller matches their efficiency.

Hence it is important to run the Fiala propellers with the Fiala engines should you want to run the diameters and pitches shown in the Fiala manual. These specifications are based only, and I cannot stress that enough, on their purpose designed and built Fiala propellers.

Other brands run the risk of over torquing and stressing the engine unnecessarily, limiting performance and service life.



Recommended props:

34 x 16 Fiala 2blade

36 x 14 Fiala 2blade

38 x 12 Fiala 2blade

30 x 20 Fiala 3blade

32 x 18 Fiala 3blade
