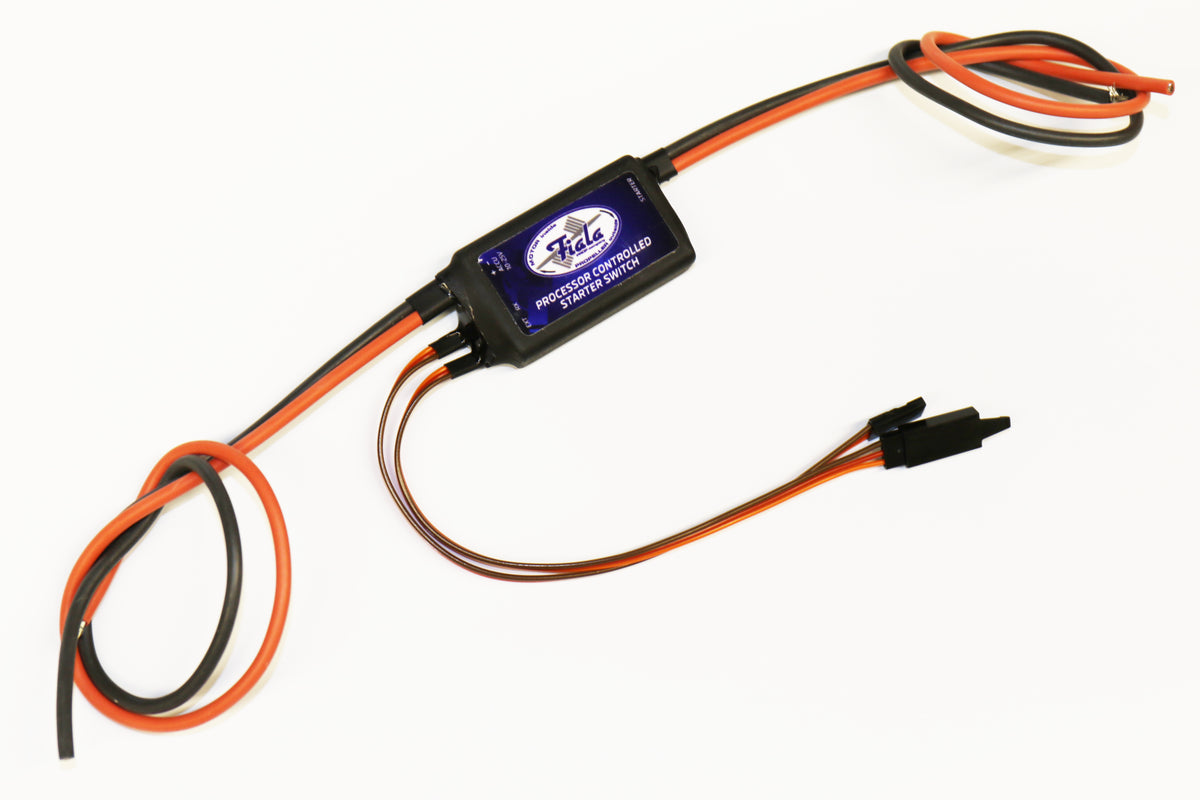

Fiala Automated Starter Controller for brushed starter

This Starter Controller will allow you to start your Fiala engines using a 3S to 5S cell pack (12V to 21V)

This is an automated setup. The starter will talk to your ignition and will limit the starter run time to 5 seconds max.

The minimum time gap/wait between starts is set to 1 second.

The starter will be connected to your receiver, then timing is 1-2ms, the switch is OFF in under 1.5ms, over 1.5ms is on.

The switch can (as mentioned) be connected to the ignition, it will read out the engines RPM and will automatically disconnect the starter once the the engine runs (1000RPM shutoff)
