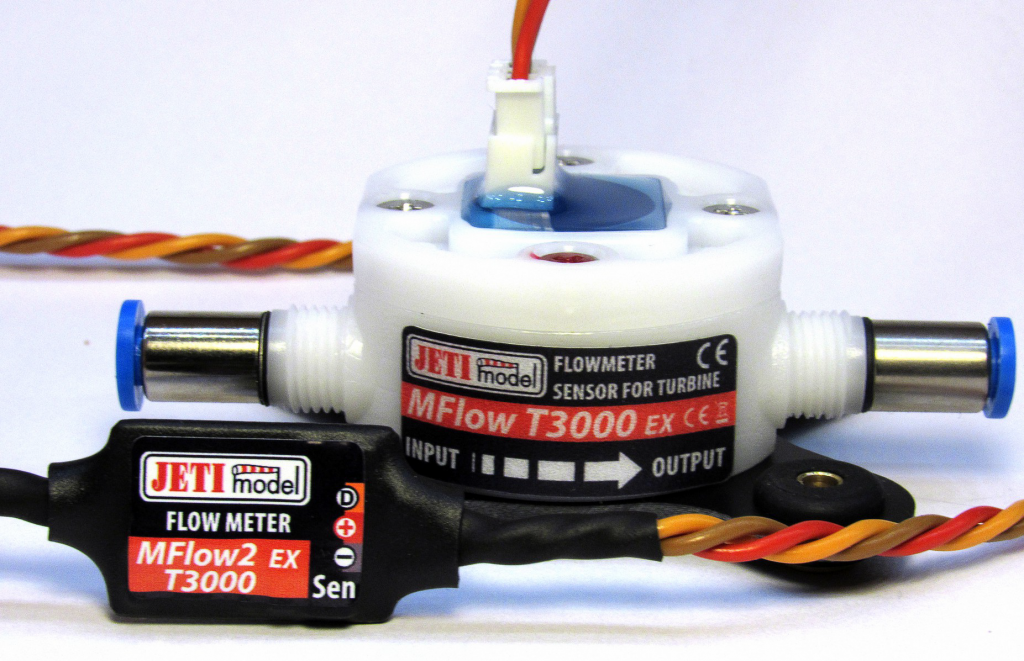

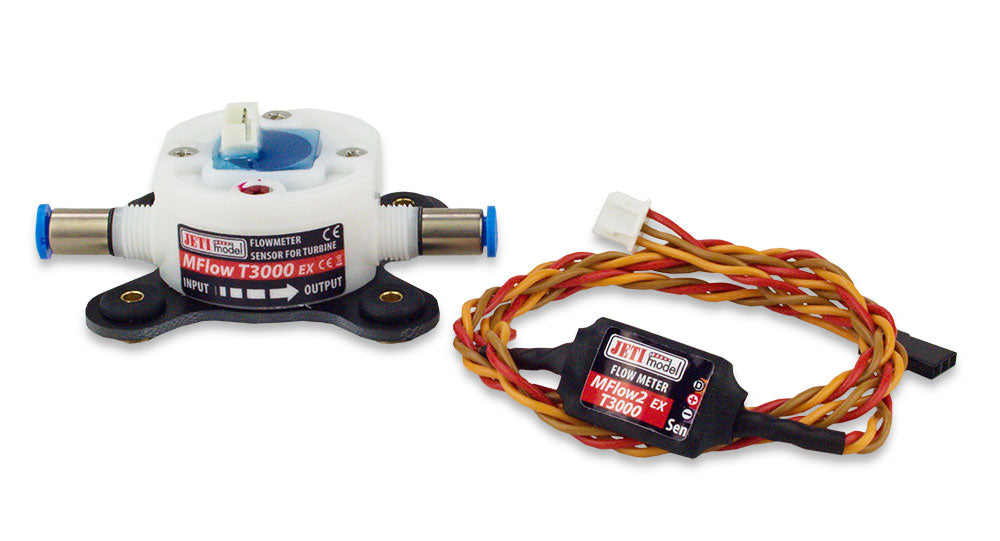

Jeti Telemetry Fuel Flow MFlow2 T and G EX digital flow sensors measure the true fuel flow of gasoline or turbine jet fuel. The Jeti MFlow2 EX sensor allows you to set your "Low/High Fuel" alarms and gives you accurate reading of fuel consumption. Also allows you to setup remote commands for transmitter wireless value reset. Turbine flow sensor is equipped with Festo 4mm fuel line connectors. Gasoline sensor can be used with Medium 3/32" (2.4mm), Large 1/8" (3.2mm) ID fuel tubing.
Through the Duplex 2.4GHz system and either a JetiBox Profi or Jeti Transmitter you can monitor your data and alarm conditions in real time. Make sure that in the Devices folder of your SD card you have a configuration file "MFLOW2.bin".
More information (links):
* Instruction Manual (pdf.)
Flow Rate: 50 to 3000 ml/minute with 2% resolution
Operational Voltage: 5V to 8.4V
Dimensions: 75mm x 40mm x 30mm
Weight: 40g
Alarms: Programmable with JetiBox, JetiBox Mini and JetiBox Profi
Technical Dimensions
CLICK HERE
SETUP GUIDE by DR.G
DR.G's GUIDE TO CARBURETOR BUTTERFLY TRAVEL, THROTTLE SERVO SPEED, ADJUSTING THE CARBURETOR NEEDLES
